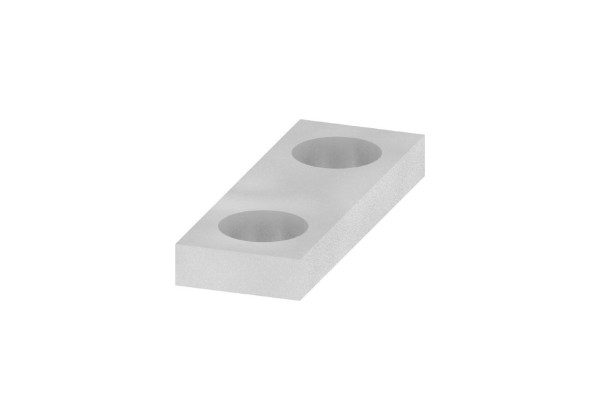

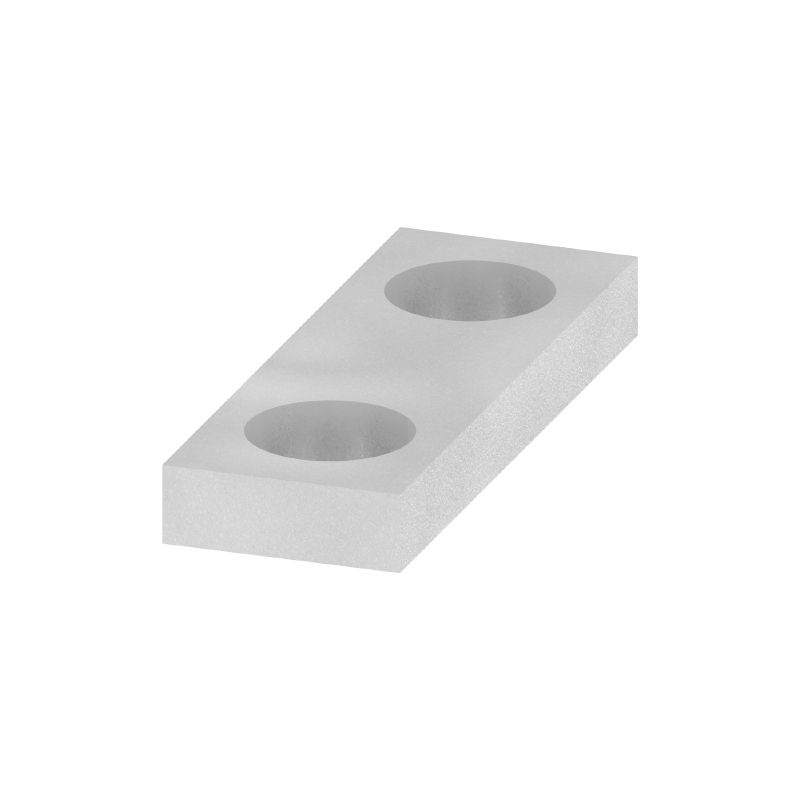

0114100000 QL 2 SAKB10 (100 pcs.)
Brand: Weidmüller
Code: 0114100000
SAK Series, Cross-connector, Cross-connector, Number of poles: 2
| Version | SAK Series, Cross-connector, Cross-connector, Number of poles: 2 |
| Order No. | 0114100000 |
| Type | QL 2 SAKB10 |
| GTIN (EAN) | 4008190056605 |
| Qty. | 100 items |
| 2 mm | |
| Depth (inches) | 0.079 inch |
| Height | 6 mm |
| Height (inches) | 0.236 inch |
| Width | 17 mm |
| Width (inches) | 0.669 inch |
| Net weight | 1.23 g |
| Storage temperature | -25 °C...55 °C |
| Material | Cu Zn |
| Colour | grey |
| Version | Cross-connector |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Number of cross-connected terminals | 2 |
| Rated current, 2-pole | 47 A |
| Rated current, multi-pole | 36 A |
| Type | Cross-connector |
| Pitch in mm (P) | 10 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated current | 36 A |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
