0661460000 EK 35/35 (20 pcs.)

Code: 0661460000

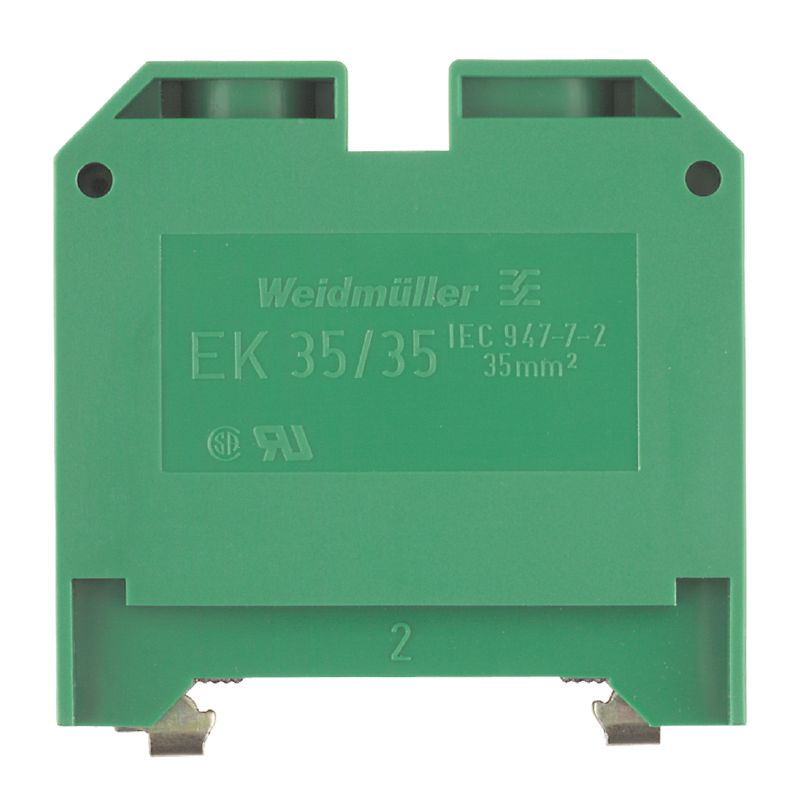

SAK Series, PE terminal, Rated cross-section: 35 mm², Screw connection, Green/yellow

Version	SAK Series, PE terminal, Rated cross-section: 35 mm², Screw connection, Green/yellow
Order No.	0661460000
Type	EK 35/35
GTIN (EAN)	4008190147600
Qty.	20 items
Delivery status	This article will no longer be available in the future.
Available until	31.12.2022
Alternative product	[1010500000](~/p/1010500000)

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	100 °C

REACH SVHC	Lead 7439-92-1
SCIP	e1c310ef-6b67-4efa-80a6-d307472f4de9

Version	Screw connection With PE connection in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	Yes
Rail	TS 35
N-function	No
PE function	Yes
PEN function	Yes

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.

35 mm²

Blade size	6.5 x 1.2 mm
Clamping range, max.	50 mm²
Clamping range, min.	6 mm²
Clamping screw	M 6
Connection cross-section, stranded, max.	50 mm²
Connection cross-section, stranded, min.	16 mm²
Connection direction	on side
Gauge to IEC 60947-1	B9
Number of connections	2
Stripping length	20 mm
Tightening torque, max.	4 Nm
Tightening torque, min.	4 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 2
Wire connection cross section AWG, min.	AWG 8
Wire connection cross section, finely stranded, max.	35 mm²
Wire connection cross section, finely stranded, min.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	10 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	6 mm²

TS 15 offset

22 mm

Rail	TS 35
Standards	IEC 60947-7-2
Wire connection cross section AWG, max.	AWG 2
Wire connection cross section AWG, min.	AWG 8

Rated short-time current	4200 A (35 mm²)
Centre screw on PE terminals	M 4
Tightening torque range for fixing screw	1.2...2.4 Nm
PEN function	Yes

Rated cross-section	35 mm²
Rated voltage to adjoining terminal	800 V
Standards	IEC 60947-7-2
Volume resistance according to IEC 60947-7-x	0.26 mΩ
Rated impulse withstand voltage to adjacent terminal	8 kV
Power loss in accordance with IEC 60947-7-x	4 W
Pollution severity	3

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	2 AWG
Conductor size Factory wiring min. (UR)	6 AWG
Conductor size Field wiring max. (UR)	2 AWG
Conductor size Field wiring min. (UR)	6 AWG
