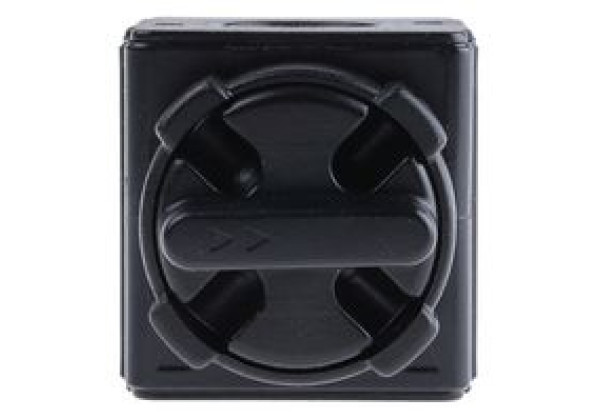

0821300901 Aventics Rotary Knob 3/2 Pneumatic Manual Control Valve NL2-BAV Series
Brand: Aventics
Code: 0821300901
Control Mechanism = Rotary Knob Function = 3/2 Connection Port Thread = G 1/4 Thread Size = 1/4in Thread Standard = G Manufacturer Series = NL2-BAV Maximum Operating Pressure = 16 bar Body Material = Die Cast Zinc Maximum Flow Rate = 2800L/min Minimum Operating Temperature = -10°C Maximum Operating Temperature = +60°C Number of Ports = 3/2 NL Series 3/2 Shut-Off Valve Manual. Shuts off supply pressure and gently relieves downstream pressure Ball valve with metal to metal sealing Padlock lockable Working pressure 0 → 60 bar Temperature range -10 → +60 °C ATEX certified II 2G2D X |
