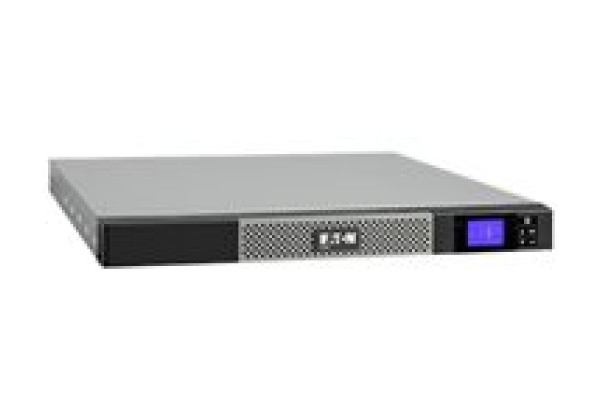

111684 Eaton 5P 650iR - UPS (rack-mountable) - 420 Watt - 650 VA - RS-232, USB - output connectors: 4 - 1U

Code: 111684

Eaton 5P 650iR - UPS (rack-mountable) - 420 Watt - 650 VA - RS-232, USB - output connectors: 4 - 1U

More information:

General	Device Type	UPS - rack-mountable
	Height (Rack Units)	1U
Expansion / Connectivity	Interfaces	EPO (emergency power off) - terminal block ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
	Expansion Slots	1 (total) / 1 (free) x Communication slot
Manufacturer Warranty	Service & Support	Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Networking	Remote Management Interface	RS-232, USB
Miscellaneous	Features	Advance Battery Management (ABM), LCD display, deep discharge protection, cold-start function, automatic self-test
	Compliant Standards	C-Tick, ISO 9001, ISO 14001, CB, EMC, IEC 62040-2 class B, IEC 62040-3, EN 62040-3, IEC 62040-1, EN 62040-1, EN 62040-2 class B
	Cables Included	USB cable - external ¦ Serial cable - external
Software / System Requirements	Software Included	Intelligent Power Software Suite
Environmental Parameters	Sound Emission	40 dB
	Min Operating Temperature	0 °C
	Max Operating Temperature	35 °C
Battery	Run Time (Up To)	2 min at full load ¦ 9 min at half load
Power Device	Frequency Required	40 - 70 Hz
	Output Voltage	AC 200/220/230/240 V + 6% / - 10% - 50/60 Hz
	Input Voltage Range	AC 160 - 294 V
	Power Output Connectors Details	4 x power IEC 60320 C13 10A
	Output Waveform	Sinewave
	UPS Technology	Line interactive
	Input Voltage Range (Adjustable)	AC 150 - 294 V
	Power Capacity	420 Watt / 650 VA
	Frequency Provided	50/60 Hz ± 0.1Hz
	Input Connectors	1 x power IEC 60320 C14
Dimensions & Weight	Width	43.8 cm
	Depth	36.4 cm
	Height	4.32 cm
	Weight	8.6 kg
