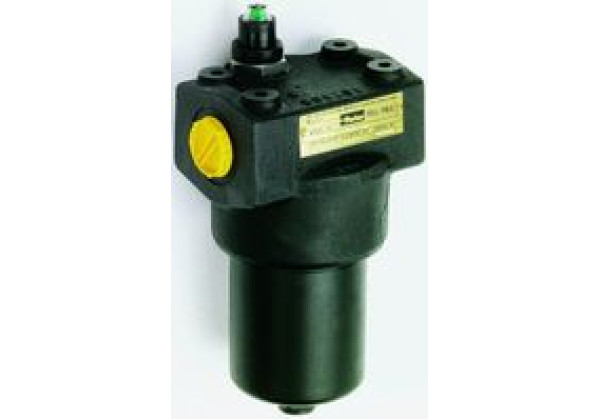

Parker Hydraulic Filter 18P110QBM3MG121S14 18P1, 95L/min 3/4 in
Brand: Parker
Code: 18P110QBM3MG121S14
Manufacturer Series = 18P1 Filtration Size = 10µm Maximum Flow Rate = 95L/min Connection Thread = BSP 3/4 Maximum Operating Pressure = 414 bar Thread Standard = BSP Thread Size = 3/4in Maximum Operating Temperature = +120°C Minimum Operating Temperature = -40°C Models 18P1 ; 28P1. High-pressure hydraulic filters designed to be used downstream of the hydraulic pump to protect components from dirt and foreign matter generated in the pump. These filters have a maximum working pressure of 414 bar, a safety factor of 3:1 and an operating temperature of -40°C to +121°C. Filter heads are manufactured from SG Iron with a steel filter bowls. Fitted with a high efficiency high capacity 10 micron element as standard.. Features and Benefits. Minimum static burst 1240 bar Auto reset visual indicator Bypass valve as standard Elements tested in accordance with ISO 4572 |
