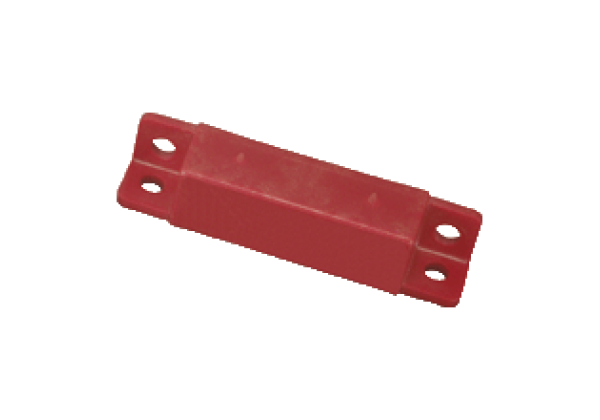

Magnetic Actuation 41FY2
Brand: Pepperl+Fuchs
Code: 41FY2
Datasheet excerpt: Technical data of 41FY2
| General specifications | ||
|---|---|---|
| Rated operating distance | 8... 19 mm | |
| Nominal ratings | ||
| Switching state indicator | NO contact | |
| Standard conformity | ||
| Standards | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Mechanical specifications | ||
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Degree of protection | IP67 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251510 |
