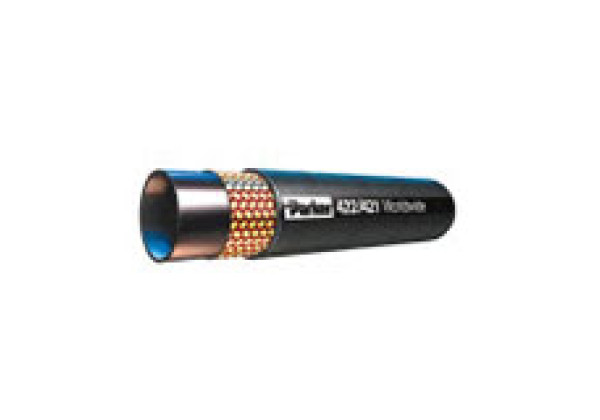

Parker 422-8 Hydraulic hose 1SN DN 12 mm 160 bar

Parker 422-8 Hydraulic hose 1SN DN 12 mm 160 bar

Brand: Parker
Code: 422-8
Parker 422-8 Hydraulic hose 1SN DN 12 mm 160 bar

No-Skive ISO 1436 1SN • Meets ISO 1436 • Worldwide availabilty • Worldwide consistent appearance, part number and functionality • No-Skive thin cover hose construction • Nitrile (NBR) inner tube – extended fluid compatibility

Material:

PN: 160 bar

More information:
Burst Pressure min.:
640 bar
Working pressure max. bar:
160 bar
Bend Radius min.:
180 mm
DN:
12 mm
Outer diameter:
20,7 mm
Inner diameter 1:
12,7 mm
Weight:
0 kg
Norm:
EN853/1SN SAE100R1AT
Series:
422
Temp. max.:
100 °C
Temp. min.:
-40 °C
Wall thickness:
7 mm
Customs tariff number:
40092100
Country of origin:
IT
