Female connector 42312A-05M-12P-SCS
Brand: Pepperl+Fuchs
Code: 42312A-05M-12P-SCS

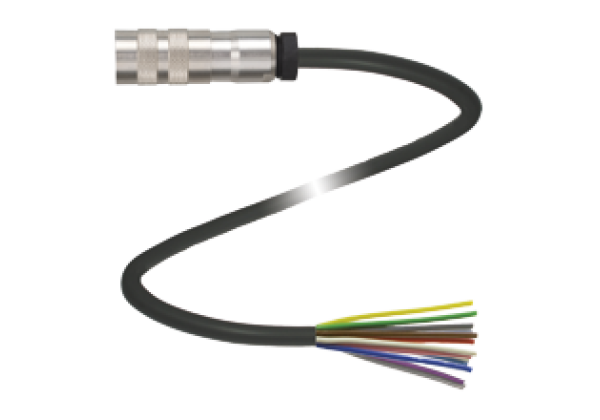

Single-ended female cordset, M16, 12-pin, PVC cable, 12-wire
Datasheet excerpt: Technical data of 42312A-05M-12P-SCS
| Product Description |
|---|
| Single-ended female cordset, M16, 12-pin, PVC cable, 12-wire |
| General specifications | ||
|---|---|---|
| Number of pins | 12 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M16 | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 30 V DC | |
| Test voltage | 1000 V | |
| Operating current | max. 1 A | |
| Volume resistance | < 5 mΩ | |
| Ambient conditions | ||
| Ambient temperature | cable, fixed: -30... 80 °C (-22... 176 °F) cable, flexing: -5... 70 °C (23... 158 °F) | |
| Pollution degree | 1 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Material | ||
| Contacts | CuSn | |
| Contact surface | Au | |
| Housing | CuSn, nickel-coated | |
| Cable | PVC | |
| Core insulation | PVC | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 7.8 mm ± 0.2 mm | |
| Bending radius | Cable, floating: ≥ 156 mm, Cable, fixed: ≥ 78 mm | |
| Color | black | |
| Cores | 12 x 0.12 mm2 + shield | |
| Shield | grid 70 % coverage | |
| Length | 5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
