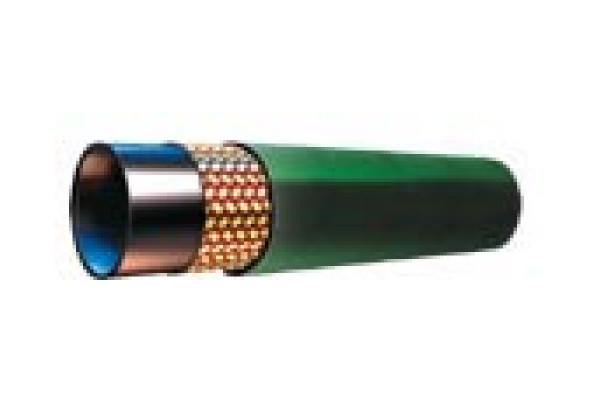

Parker 424-24 Hydraulic hose DN 40 mm 35 bar

Parker 424-24 Hydraulic hose DN 40 mm 35 bar

Brand: Parker
Code: 424-24
Parker 424-24 Hydraulic hose DN 40 mm 35 bar

No-Skive Phosphate ester resistant hose • No-Skive thin cover hose construction • SAE 100R1 pressure rating

Material:

PN: 35 bar

More information:
Burst Pressure min.:
140 bar (2000 PSI)
Working pressure max. bar:
35 bar
Working pressure max. PSI:
500 PSI
Bend Radius min.:
500 mm
DN:
40 mm
Outer diameter:
51 mm
Inner diameter 1:
38,1 mm
Weight:
0 kg
Norm:
EN853/1SN SAE100R1AT
Series:
424
Temp. max.:
100 °C
Temp. min.:
-40 °C
Customs tariff number:
40092100
Country of origin:
US
