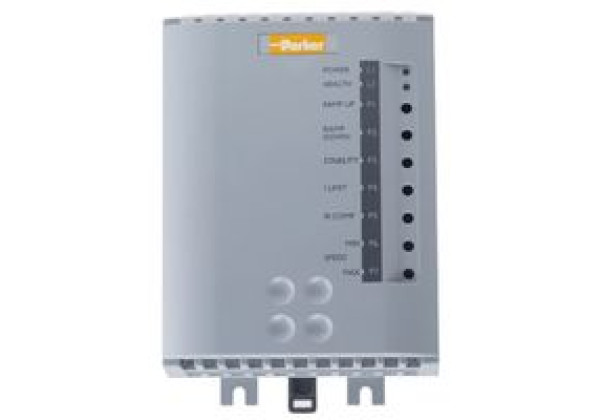

508-00-20-00 Parker, DC Motor Controller, 1 Phase, Potentiometer Control, 110 → 120 V ac, 220 → 240 V ac, 12 A, DIN
Brand: Parker
Code: 508-00-20-00
Supply Voltage = 110 → 120 V ac, 220 → 240 V ac Current Rating = 12 A Voltage Rating = 210 V dc Compatible Motor Type = Permanent Magnet, Shunt Control Input = Potentiometer Mounting Style = DIN Rail Mount Phase = 1 Length = 105mm Width = 140mm Depth = 90mm Dimensions = 105 x 140 x 90 mm Operating Temperature Range = 0 → +40 °C The mains supply must be fused. SSD 506, 507 ; 508 Speed Controllers. Compact non-isolated motor speed control modules for dc. shunt wound and permanent magnet field motors. DIN rail mounting Suitable for 110//120 or 220/240V single phase ac. supplies (switch selectable) Fully isolated heatsink Control signals available for zero speed, drive health and speed trim Adjustable speed ramp up and ramp down times (1-15 secs) Adjustable motor maximum and minimum speed limits Adjustable armature current limit (0-100%) Adjustable I.R. compensation (for armature voltage feedback control) Switch selectable speed range Switch selectable feedback mode either tacho-generator or armature voltage Torque control of the motor is achieved by regulation of the armature current Stall timer will isolate the motor current after 15 seconds to prevent the motor overheating Inbuilt protection devices, high energy transient suppression, fuseless overcurrent protection above 200% overload IP20 protection rating |
