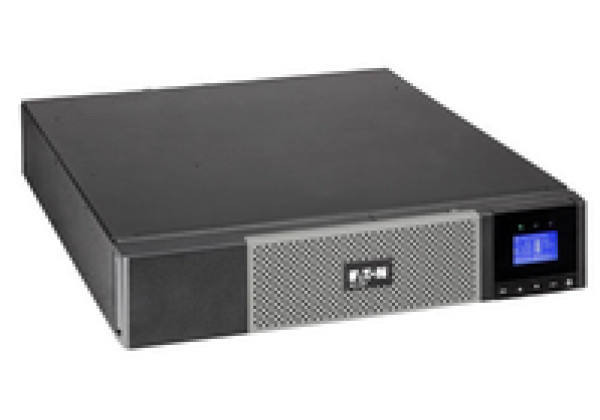

5PX1500IRTN Eaton 5PX 1500VA Netpack uninterruptible power supply (UPS) Line-Interactive 1350 W 8 AC outlet(s)

Code: 5PX1500IRTN

The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment.

More information:

Weight & dimensions	Width	441 mm
	Depth	522 mm
	Height	86.2 mm
	Weight	27600 g
Battery	Typical backup time at full load	3 min
	Typical backup time at half load	19 min
	Hot-swap battery	Yes
	Automatic battery test	Yes
Operational conditions	Operating temperature (T-T)	0 - 40 °C
Design	Form factor	Rackmount/Tower
	Product colour	Black
	Rack capacity	2U
	Built-in fan	Yes
	LED indicators	Yes
	Display	LCD
	Safety	IEC/EN 62040-1-1, IEC/EN 62040-2 (EMC), IEC/EN 62040-3
	Certification	CE, CB, TÜV
Features	UPS topology	Line-Interactive
	Output power capacity	1500 VA
	Output power	1350 W
	Waveform	Pure sine
	Input operation voltage (min)	150 V
	Input operation voltage (max)	294 V
	Input frequency	40/70 Hz
	Output operation voltage (min)	200 V
	Output operation voltage (max)	240 V
	Output frequency	50/60 Hz
	Number of input phases	1
	Number of output phases	1
	Efficiency	99 %
	Power factor	0.9
	Emergency Power Off (EPO)	Yes
	Noise level	45 dB
	Surge protection	Yes
Packaging data	Management card included	Yes
	Bundled software	Intelligent Power Protector
Ports & interfaces	AC outlet types	C13 coupler
	Power plug	C14 coupler
	AC outlets quantity	8 AC outlet(s)
	USB port	Yes
	USB 2.0 ports quantity	1
	RS-232 ports	1
Other features	Input connection type	IEC
	Nominal output voltage	200-240 V
	Compatible operating systems	Windows (x86/x64) 7 / 2008 / Vista / 2003 / XP < br / Windows (x86) 2000 < br / Linux (x86/x64) < br / Debian GNU Linux: Lenny < br / SUSE/Novell: SLES 11, OpenSUSE 11.2, < br / Redhat Enterprise Linux: RHEL 5.4, Fedora core 12 < br / Ubuntu: 10.04 < br / ESX 4; ESXi 4, 4.10 < br / Microsoft Hyper-V, Hyper V Server
	Overload protection	Yes
