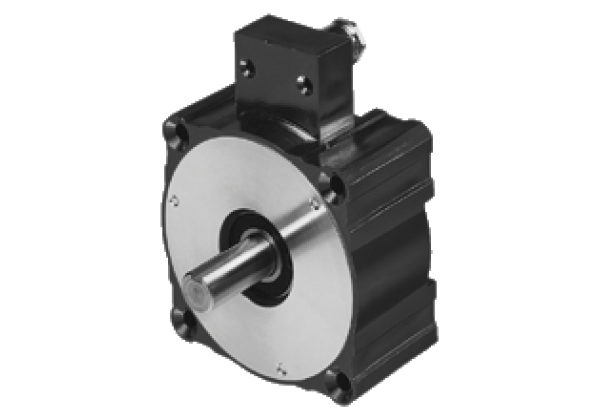

Incremental rotary encoder 60-69*1

Code: 60-69*1

Up to 1250 ppr, Rectangular design, 10 V... 30 V with short-circuit proof push-pull output, Output type: push-pull, incremental

Datasheet excerpt: Technical data of 60-69*1

General specifications
Pulse count		max. 1250
Electrical specifications
Operating voltage		10... 30 V DC
No-load supply current		max. 80 mA
Output
Output type		push-pull, incremental
Voltage drop		< 4 V
Load current		max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 50 kHz
Rise time		250 ns
De-energized delay		250 ns
Connection
Terminal compartment		with cable gland PG7
Standard conformity
Degree of protection		DIN EN 60529, IP50
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Ambient conditions
Operating temperature
	Plastic disk	-20... 60 °C (-4... 140 °F)
Storage temperature
	Plastic disk	-40... 60 °C (-40... 140 °F)
Mechanical specifications
Material
	Housing	nickel-plated plastic
	Flange	Diecast zinc
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 400 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		≤ 36 gcm²
Starting torque		≤ 1 Ncm
Shaft load
	Axial	40 N
	Radial	60 N
