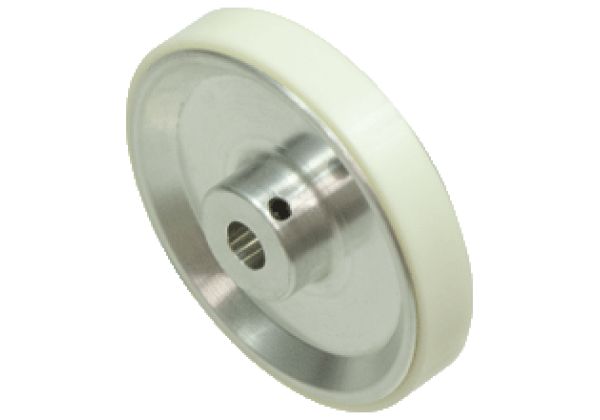

Measuring wheel 9108, 8
Brand: Pepperl+Fuchs
Code: 9108, 8
Measuring wheel for shaft diameter 8 mm, Plastic coating, 200 mm circumference
Datasheet excerpt: Technical data of 9108, 8
| Product Description |
|---|
| Measuring wheel for shaft diameter 8 mm |
| Mechanical specifications | ||
|---|---|---|
| Surface | plastic Hytrel 4056 | |
| Diameter | D = 63.7 mm | |
| Circumference | 200 mm | |
| Width | 12 mm | |
| Shaft diameter | d = 8 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
