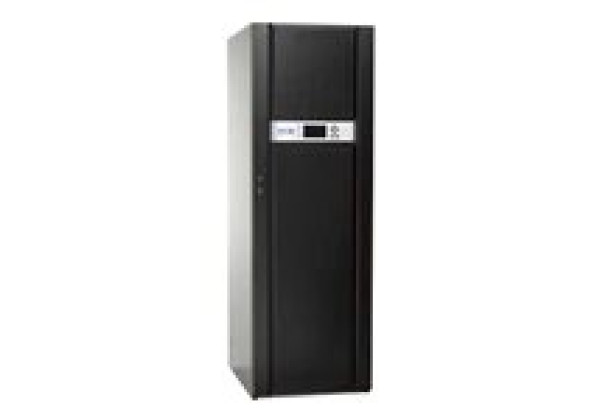

93E60KMBSN Eaton 93E uninterruptible power supply (UPS) Double-conversion (Online) 60000 VA 54000 W

93E60KMBSN Eaton 93E uninterruptible power supply (UPS) Double-conversion (Online) 60000 VA 54000 W

Code: 93E60KMBSN
The Eaton 93E UPS is designed to help IT managers address their biggest data center challenges: energy costs, remote management & space. Up to 35 percent smaller & 7 percent more effective than competitive units, the 93E provides an all-in-one, energy-efficient solution in the body of a compact UPS.

Lowest total cost of ownership

The 93E is up to seven percent more efficient than other UPSs in its class, helping to keep your operating costs down.

Guarantee zero downtime

Detachable maintenance bypass options allow you to redirect power during UPS service, preventing downtime and reducing repair time and costs.

Maximize runtime with batteries

Get the ability to scale as you grow with up to 21 minutes of runtime from internal batteries and up to 138 minutes of runtime when paired with an External Battery Cabinet (EBC).

Save floor space

The 93E occupies up to 35 percent less floor space than other UPSs in its class, giving you more room for revenue-producing equipment.
More information:
Weight & dimensions
Width
600 mm
Depth
800 mm
Height
1880 mm
Weight
202000 g
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Charging current
16 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 55 °C
Operating relative humidity (H-H)
5 - 95 %
Operating altitude
0 - 2000 m
Design
Form factor
Tower
Product colour
Black
LED indicators
Yes
Display
LCD
International Protection (IP) code
IP20
Certification
IEC/EN 62040-2 < br / EN55022/EN55024 < br / UL1778 < br / ISO 9001: 2000, ISO 14001:1996 < br / UL, cUL
Features
UPS topology
Double-conversion (Online)
Output power capacity
60000 VA
Output power
54000 W
Input operation voltage (min)
230 V
Input operation voltage (max)
400 V
Input frequency
50/60 Hz
Output operation voltage (min)
230 V
Output operation voltage (max)
400 V
Output frequency
50/60 Hz
Number of input phases
3
Number of output phases
3
Efficiency
93.8 %
Input power factor
0.99
Output voltage Total Harmonic Distortion (THD)
7 %
Input current Total Harmonic Distortion (THD)
5 %
Noise level
65 dB
Audible alarm(s)
Yes
Ports & interfaces
USB port
Yes
Serial interface
Yes
