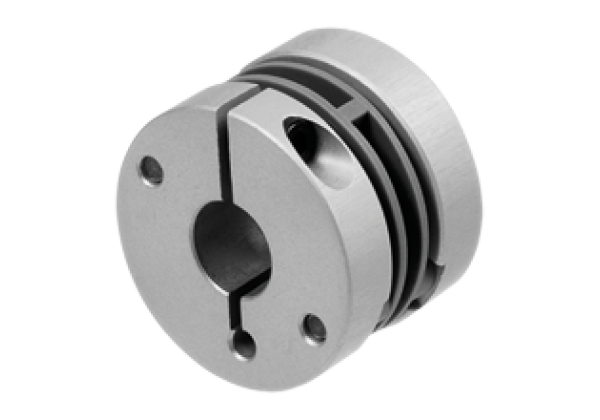

Coupling 9404 10*10
Brand: Pepperl+Fuchs
Code: 9404 10*10
Spring disk coupling, Very high torsion spring stiffness, Suitable up to 12.000 rpm, Well misalignment compensation, Vibration- isolating, Electrically insulating
Datasheet excerpt: Technical data of 9404 10*10
| Product Description |
|---|
| Spring disk coupling |
| Mechanical specifications | ||
|---|---|---|
| Shaft diameter | d1 = 10 mm , d2 = 10 mm | |
| Material | ||
| Flange | Aluminum | |
| Spring washers | plastic | |
| Mass | approx. 28 g | |
| Rotational speed | max. 12000 min -1 | |
| Max. torque | 0.6 Nm | |
| Radial offset | max. ± 0.3 mm | |
| Axial offset | max. ± 0.4 mm | |
| Angle error | max. ± 2.5 ° | |
| Torsional rigidity | 50 Nm / rad | |
| Mounting | clamping flange | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153016 |
