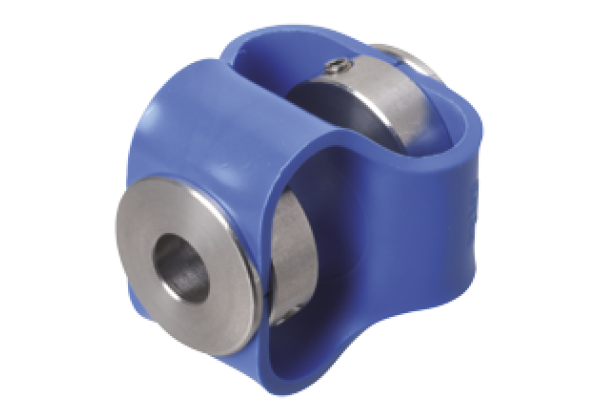

Coupling 9408 10*10
Brand: Pepperl+Fuchs
Code: 9408 10*10
Double loop coupling 10 x 10, Average torsional rigidity, Small reset forces, Shock- and vibration-absorbing, Thermally and electrically insulating, Very good compensation of radial, lateral and angular misalignments
Datasheet excerpt: Technical data of 9408 10*10
| Product Description |
|---|
| Double loop coupling 10 x 10 |
| Ambient conditions | ||
|---|---|---|
| Operating temperature | -30... 80 °C (-22... 176 °F) | |
| Mechanical specifications | ||
| Shaft diameter | 10 mm | |
| Material | ||
| Fastener | Polyurethane | |
| End piece | Zinc plated steel | |
| Mass | 85 g | |
| Rotational speed | max. 3000 min | |
| Max. torque | 2 Nm | |
| Radial offset | max. ± 3 mm | |
| Axial offset | max. ± 4 mm | |
| Angle error | max. ± 12 ° | |
| Torsion spring stiffness | 28 Nm / rad | |
| Radial spring stiffness | 7 N / mm | |
| Moment of inertia | 106 kg m2 x 10-7 | |
| Mounting | clamp screws M4 x 6, DIN 916 | |
| Tightening torque of clamping screws | max. 1 Nm | |
