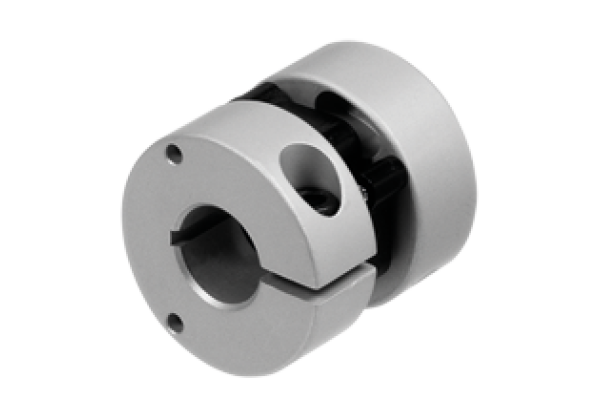

Coupling 9410 12*12
Brand: Pepperl+Fuchs
Code: 9410 12*12
Precision coupling, Precision coupling
Datasheet excerpt: Technical data of 9410 12*12
| Product Description |
|---|
| Precision coupling |
| Mechanical specifications | ||
|---|---|---|
| Shaft diameter | d1 = 12 mm , d2 = 12 mm | |
| Material | Delrin 107, AlMgSi1, hard coated | |
| Mass | 25 g | |
| Rotational speed | max. 15000 min -1 | |
| Max. torque | 1 Nm | |
| Tightening torque, fastening screws | 1.3 Nm | |
| Radial offset | max. ± 0.5 mm | |
| Axial offset | max. ± 0.3 mm | |
| Angle error | max. ± 1.5 ° | |
| Torsional rigidity | 50 Nm / rad | |
| Moment of inertia | 20 kg m2 x 10-7 | |
| Mounting | clamping flange | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153016 |
