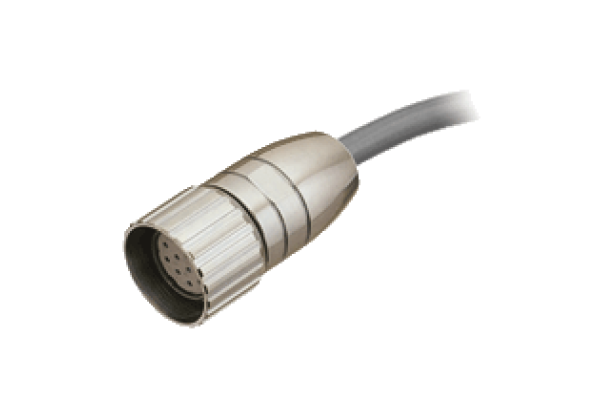

Female connector 9416-*M-12P-AVM
Brand: Pepperl+Fuchs
Code: 9416-*M-12P-AVM
Female cordset, M23, 12-pin, PVC cable, 8-core
Datasheet excerpt: Technical data of 9416-*M-12P-AVM
| Product Description |
|---|
| Female cordset, M23, 12-pin, PVC cable, 8-core |
| General specifications | ||
|---|---|---|
| Number of pins | 12 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M23 | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 30 V DC | |
| Test voltage | 1200 V | |
| Operating current | max. 3 A | |
| Volume resistance | < 5 mΩ | |
| Insulation resistance | min. 100 MΩ | |
| Ambient conditions | ||
| Ambient temperature | cable, fixed: -40... 80 °C (-40... 176 °F) cable, flexing: -5... 70 °C (23... 158 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | spring-loaded contact socket | |
| Degree of protection | IP67 | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Housing | CuZn, nickel-plated | |
| Body | CuZn | |
| Cable | PVC | |
| Slotted nut | Zinc die-casting, nickel-plated | |
| Core insulation | PVC | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 7.1 mm ± 0.15 mm | |
| Bending radius | Cable, floating: ≥ 107 mm, Cable, fixed: ≥ 43 mm | |
| Color | grey | |
| Cores | 6 x 2 x 0.14 mm2 + shield | |
| Shield | grid covering 85 % | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
