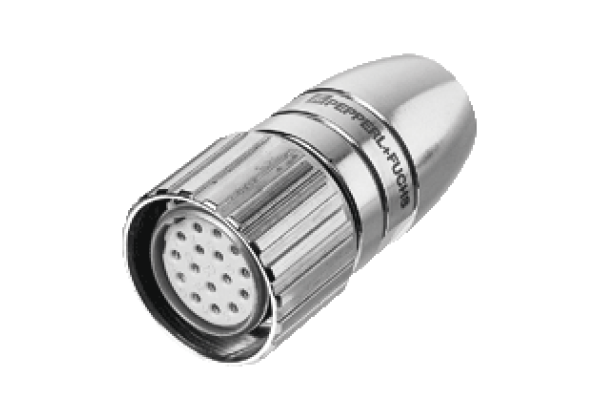

Female connector 9420
Brand: Pepperl+Fuchs
Code: 9420
Socket, Straight, 16-pin
Datasheet excerpt: Technical data of 9420
| General specifications | ||
|---|---|---|
| Type | Female connector | |
| Number of pins | 16-pin | |
| Construction type | straight | |
| Standard conformity | ||
| Degree of protection | IP68 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
