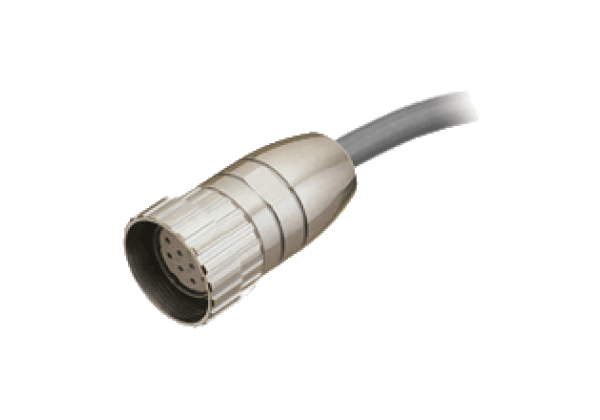

Cable socket, shielded 9424-01M-24P-FXS
Brand: Pepperl+Fuchs
Code: 9424-01M-24P-FXS
Female cordset single-ended M23 straight A-coded, 19-pin, PVC cable twisted pairs grey, shielded
Datasheet excerpt: Technical data of 9424-01M-24P-FXS
| Product Description |
|---|
| Female cordset single-ended M23 straight A-coded, 19-pin, PVC cable twisted pairs grey, shielded |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M23 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 19 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | cable end | |
| Customization | stripped 94 mm , wire end ferrule | |
| Electrical specifications | ||
| Operating voltage | max. 32 V DC | |
| Operating current | max. 3 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Flammability | IEC 60332-1-2 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40... 125 °C (-40... 257 °F) | |
| Cable, fixed | -40... 80 °C (-40... 176 °F) | |
| Cable, flexing | -5... 70 °C (23... 158 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Mating cycles | 50 | |
| Shielding | shield not connected to connector | |
| Degree of protection | IP68 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 8.9 mm | |
| Bending radius | > 15 x cable diameter, moving > 6 x cable diameter, fixed | |
| Sheath color | grey (similar to RAL 7032) | |
| Number of cores | 19 | |
| Core cross section | 0.14 mm2 | |
| Cores color | Core 1: green Core 2: yellow Core 3: grey Core 4: pink Core 5: blue Core 6: white Core 7: red Core 8: black Core 9: violet Core 10: grey/pink Core 11: red/blue Core 12: brown Core 13: white/green Core 14: brown/green Core 15: white/yellow Core 16: white/pink Core 17: pink/brown Core 18: white/blue Core 19: grey/brown | |
| Core construction | 12 x 2 x 0,14 mm2 twisted pairs | |
| Shield | tinned copper braiding, 80 % coverage | |
| Length | 1 m | |
| Cable code | LiYCY | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | CuZn | |
| Seal | FPM | |
| Contact surface | gold plated (Au) | |
| Cable | ||
| Sheathing | PVC | |
| Core insulation | PVC | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
