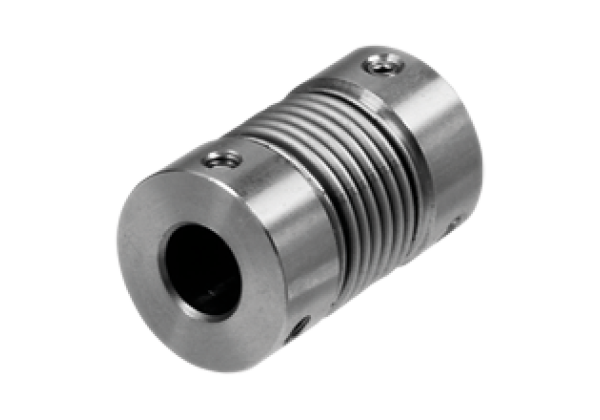

Coupling 9460
Brand: Pepperl+Fuchs
Code: 9460
Stainless steel bellows coupling, Stainless steel bellows coupling
Datasheet excerpt: Technical data of 9460
| Product Description |
|---|
| Stainless steel bellows coupling |
| Mechanical specifications | ||
|---|---|---|
| Material | stainless steel | |
| Mass | 55 g | |
| Rotational speed | max. 7000 min | |
| Max. torque | 1 Nm | |
| Radial offset | max. ± 0.2 mm | |
| Axial offset | max. ± 0.6 mm | |
| Angle error | max. ± 3 ° | |
| Moment of inertia | 43 kg m2 x 10-7 | |
| Mounting | clamp screws | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153016 |
