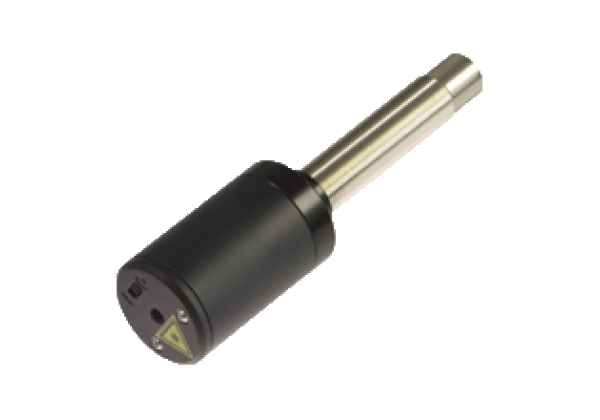

Alignment aid AA-18-Laser
Brand: Pepperl+Fuchs
Code: AA-18-Laser
Laser alignment aid for cylindrical sensors with 18 mm threaded housing, Easy adjustment of mounting aids for cylindrical M18 sensors
Datasheet excerpt: Technical data of AA-18-Laser
| Product Description |
|---|
| Laser alignment aid for cylindrical sensors with 18 mm threaded housing |
| General specifications | ||
|---|---|---|
| Laser nominal ratings | ||
| Note | LASER LIGHT DO NOT STARE INTO BEAM | |
| Laser class | 2 | |
| Wave length | 650 nm | |
| Beam divergence | < 1.5 mrad | |
| Maximum optical power output | < 1 mW | |
| Electrical specifications | ||
| Operating voltage | 3 V DC battery: 2 AAA-size batteries (not included with delivery) | |
| Ambient conditions | ||
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Material | ||
| Housing | PA 6 brass, nickel-plated | |
| Mass | 130 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273607 |
| ECLASS 12.0 | 27273607 |
| ECLASS 11.0 | 27273607 |
| ECLASS 10.0.1 | 27273607 |
| ECLASS 9.0 | 27273607 |
| ECLASS 8.0 | 27279210 |
| ECLASS 5.1 | 27279210 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153017 |
