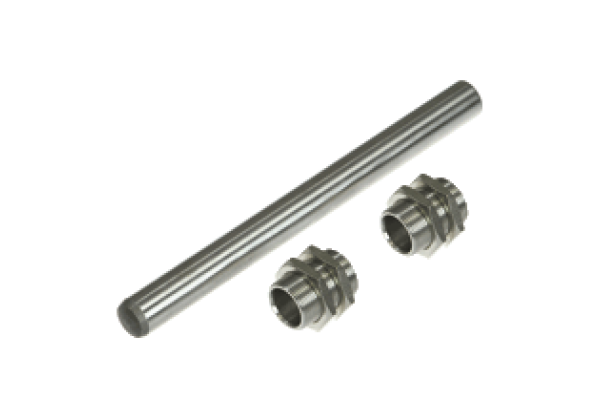

Alignment aid AA-UDB-18GM-01
Brand: Pepperl+Fuchs
Code: AA-UDB-18GM-01
alignment aid for double sheet sensor
Datasheet excerpt: Technical data of AA-UDB-18GM-01
| Product Description |
|---|
| alignment aid for double sheet sensor |
| Mechanical specifications | ||
|---|---|---|
| Material | Stainless steel 1.4305 / AISI 303 | |
| Dimensions | rod length: 160 mm sleeve length: 25 mm | |
| General information | ||
| Scope of delivery | 1 rod 2 Threaded sleves M18 4 nuts, M18 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273607 |
| ECLASS 12.0 | 27273607 |
| ECLASS 11.0 | 27273607 |
| ECLASS 10.0.1 | 27273607 |
| ECLASS 9.0 | 27273607 |
| ECLASS 8.0 | 27279210 |
| ECLASS 5.1 | 27279210 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153017 |
