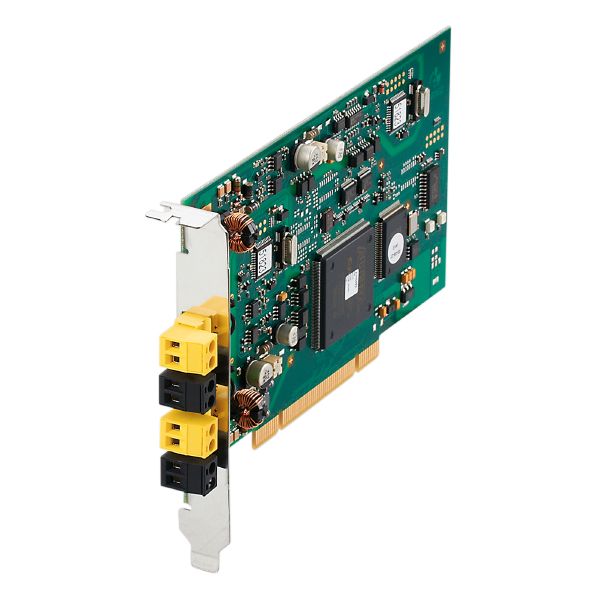

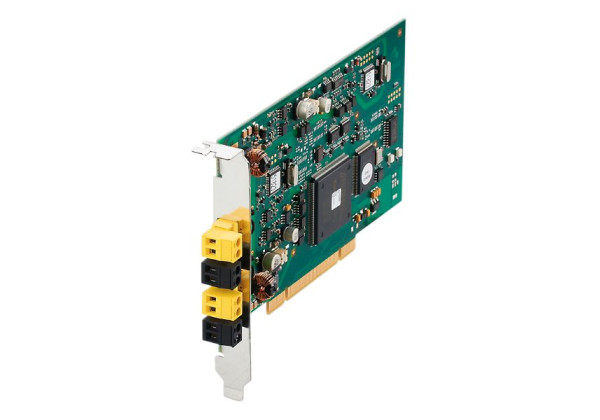

AC1096 AS-Interface PCI card PLC PCB PCI-Card 2 Master V3.0
Brand: IFM Electronic
Code: AC1096
- With integrated PLC functionality
- Reliable and fast data exchange with the sensor actuator level
- For installation in PCs, control cabinets and operator panels
- User-friendly and simple configuration, set-up and diagnosis
Application
| Application | PCI card with AS-i master functionality |
|---|
Electrical data
| Current consumption [mA] | < 400; (5 V: 300 mA; 3,3 V: 100 mA) |
|---|---|
| Max. current consumption from AS-i [mA] | 70 |
| Number of AS-i masters | 2 |
Interfaces
| Communication interface | PCI-Bus |
|---|
Operating conditions
| Protection | IP 00 |
|---|
Tests / approvals
| MTTF [years] | 120 |
|---|
Mechanical data
| Weight [g] | 191.55 |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1096-00 — 31.01.2008 —
