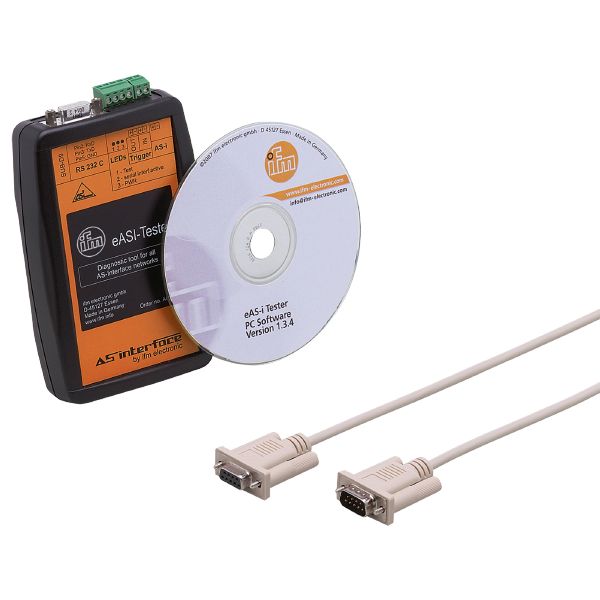

AC1145 - ecomat300-eAS-i Tester
Brand: IFM Electronic
Code: AC1145
- Indication of all slaves on the bus
- Reading and writing slave data and slave parameters
- Local diagnosis of the AS-i network
- User-friendly diagnosis and evaluation
Application
| Application | Local diagnosis of the AS-i network; creation of test reports for AS-i networks; diagnosis and analysis tool for AS-i |
|---|
Electrical data
| Undervoltage monitoring | yes |
|---|
Operating conditions
| Ambient temperature [°C] | 0...55 |
|---|---|
| Storage temperature [°C] | -25...70 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 280 |
AS-i classification
| AS-i version | 2.1 |
|---|
Mechanical data
| Weight [g] | 346 |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1145-00 — 10.07.2014 —
