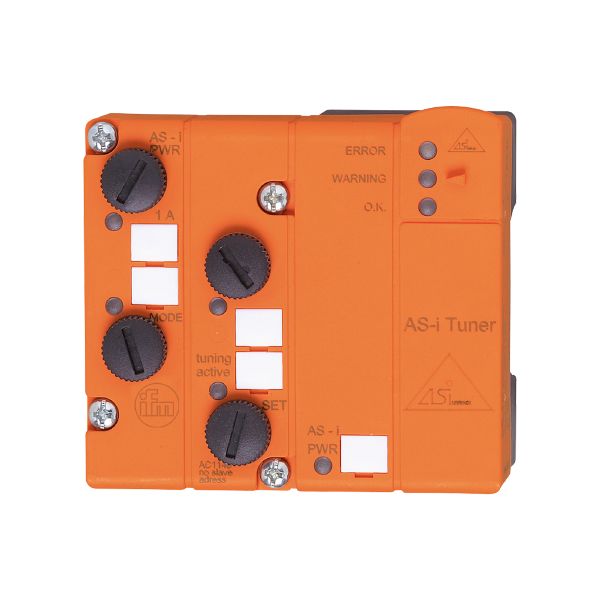

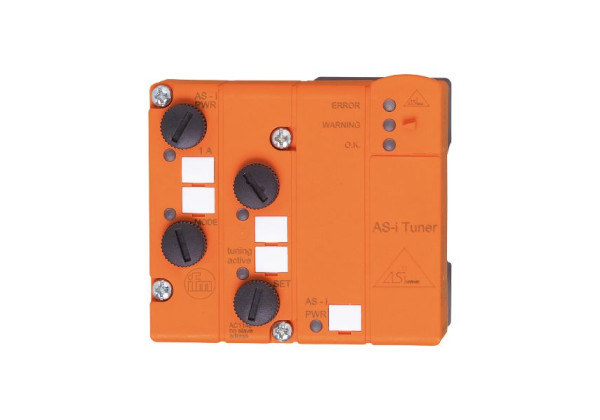

AC1146 - ecomat300-AS-i Tuner IP67
Brand: IFM Electronic
Code: AC1146
- For checking the AS-i network
- For reliably monitoring the message quality
- Clearly visible LEDs for indicating communication status and operation
- Cable extension by a further 200 metres without additional repeater
- Can be used in any network topology
Application
| Application | diagnostic tool for AS-i |
|---|
Electrical data
| Nominal voltage DC [V] | 26.5...31.6 |
|---|---|
| Max. current consumption from AS-i [mA] | 60 |
| Reverse polarity protection | yes |
| Undervoltage monitoring | yes |
Operating conditions
| Ambient temperature [°C] | 0...55 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| MTTF [years] | 140 |
|---|
Mechanical data
| Weight [g] | 199.2 |
|---|---|
| Materials | PBT |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| contact pins to module lower part, FK: | |
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1146-00 — 09.08.2006 —
