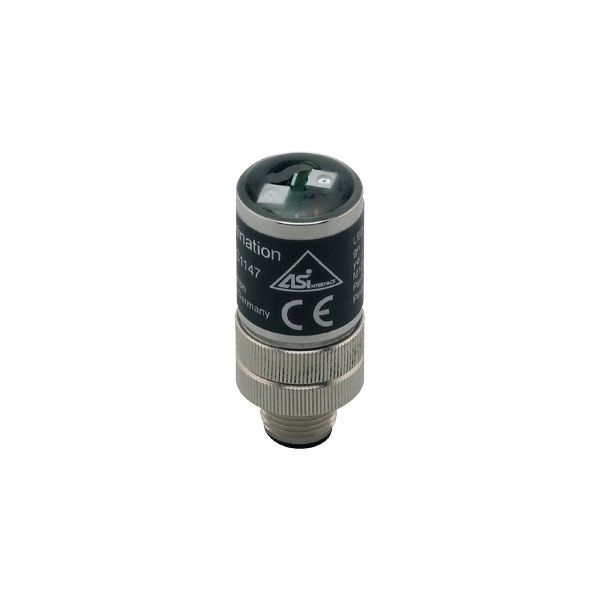

AC1147 AS-Interface passive bus termination AS-I BUS TERMINATION
Brand: IFM Electronic
Code: AC1147
- For extending the cable without any additional repeater
- Can be used in any network topology
- Quick and easy to mount using flat cable insulation displacement connector
- For improving the signal quality
- With LED display for checking the supply voltage
Application
| Application | improvement of the signal quality |
|---|
Electrical data
| Nominal voltage DC [V] | 26.5...31.6 |
|---|---|
| Max. current consumption from AS-i [mA] | 10 |
| Reverse polarity protection | yes |
| Undervoltage monitoring | yes |
Outputs
| Electrical design | AS-i |
|---|---|
| Electrically separated | no |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Storage humidity [%] | > 90; (non condensing) |
| Protection | IP 67 |
Tests / approvals
| MTTF [years] | 550 |
|---|
Mechanical data
| Weight [g] | 45 |
|---|---|
| Dimensions [mm] | Ø 20 / L = 46 |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1147-00 — 30.08.2012 —
