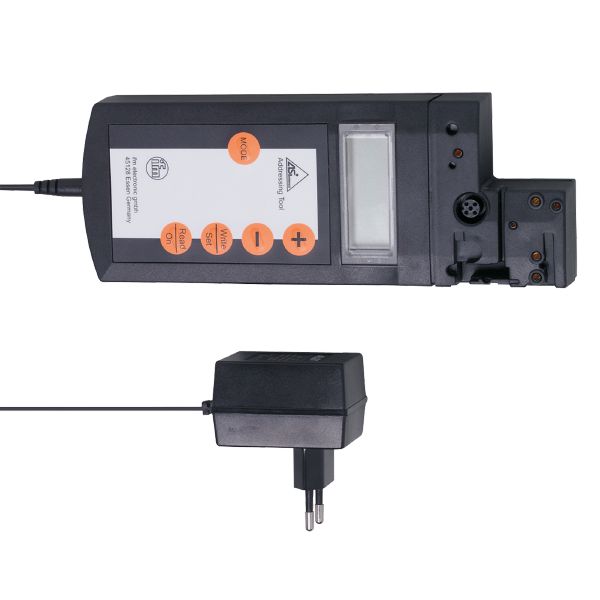

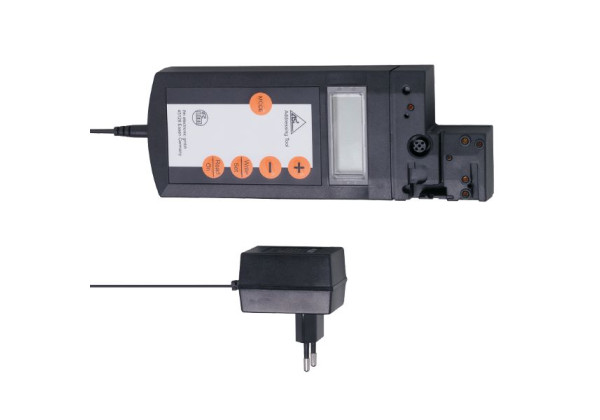

AC1154 - ecomat300-Addressing unit AS-i 3.0
Brand: IFM Electronic
Code: AC1154
- For easy addressing and programming of AS-i slaves
- Indication of all slaves on the bus
- Reading and writing slave data and slave parameters
- Simple reading of error messages
- LCD display for indicating operating mode and slave address
Application
| Application | set-up and diagnosis |
|---|
Electrical data
| Reverse polarity protection | yes |
|---|
Operating conditions
| Protection | IP 20 |
|---|
AS-i classification
| AS-i version | 3.0 |
|---|---|
| Extended addressing mode | yes |
Mechanical data
| Weight [g] | 445 |
|---|
Accessories
| Items supplied |
| |||
|---|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1154-00 — 16.04.2010 —
