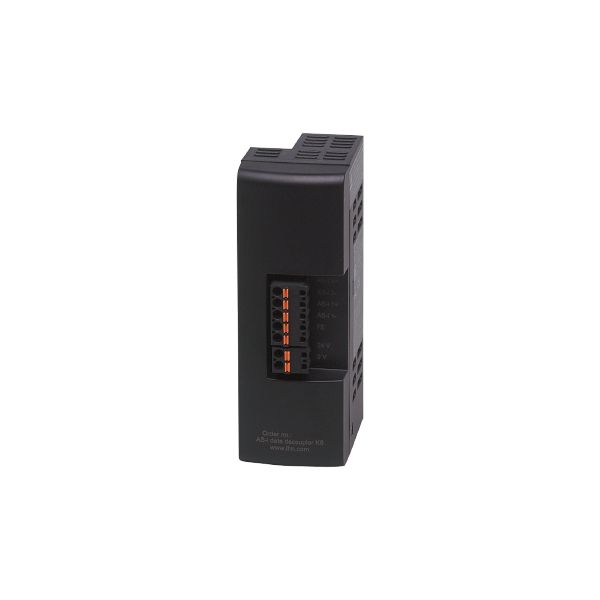

AC1250 - ecomat300-AS-i Data Decoupler
Brand: IFM Electronic
Code: AC1250
- Reliable voltage supply for gateways, modules, sensors and actuators
- High current rating
- Supply of several gateways from a single power supply
Electrical data
| Operating voltage [V] | 21.5...31.6 DC |
|---|---|
| Reverse polarity protection | yes |
Outputs
| Short-circuit proof | yes |
|---|---|
| Electrically separated | no |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -20...70 |
| Protection | IP 20 |
Tests / approvals
| MTTF [years] | 701 |
|---|
AS-i classification
| AS-i certificate | 93001 |
|---|
Mechanical data
| Weight [g] | 263.5 |
|---|---|
| Materials | PC |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | ...2.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1250-00 — 13.04.2023 —
