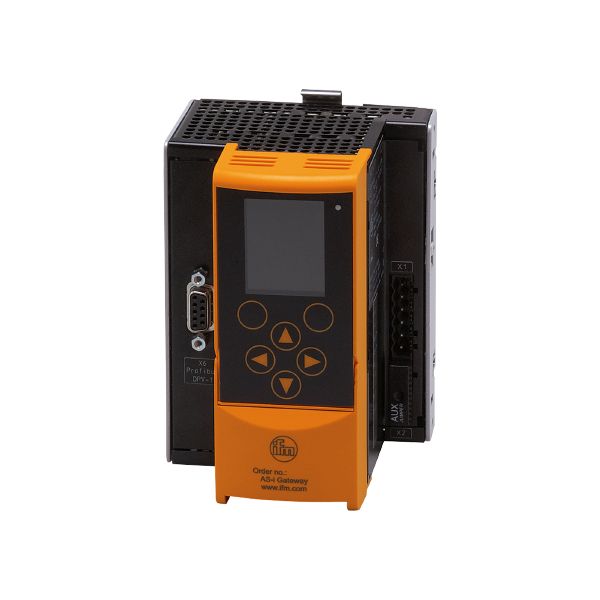

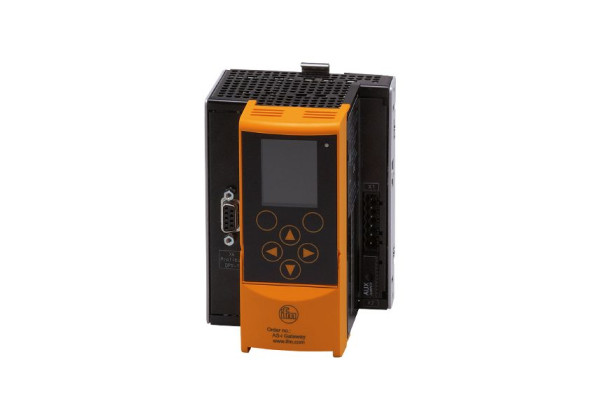

AS-Interface PROFIBUS DP-Gateway AC1411 AS-i Gateway 1Master PB

Code: AC1411

With integrated fieldbus interface
Reliable and fast data exchange with the sensor actuator level
Colour display for indicating the status of all AS-i slaves
User-friendly and simple configuration, set-up and diagnosis
Quick-setup menu with intuitive operation

Application

Application	PROFIBUS gateway

Electrical data

Operating voltage [V]	18...32 DC; (AUX; AS-i: 21...31,6 V DC)
Current consumption [mA]	< 500; (AUX / AS-i 1)
Max. current consumption from AS-i [mA]	500; (with external supply: 10 mA)
Number of AS-i masters	1
Electrical separation	yes

Outputs

Voltage range DC [V]	to PELV

Interfaces

Communication interface	Ethernet; PROFIBUS

Ethernet - Modbus TCP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	Modbus TCP
Usage type	programming

Ethernet - TCP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	TCP/IP
Usage type	programming

Ethernet - UDP/IP

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	UDP/IP
Usage type	programming

PROFIBUS

Transmission standard	EN 50170
Transmission rate	12 MBaud
Protocol	Profibus DP
Usage type	data transmission
Version	DPV0; DPV1

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...70
Protection	IP 20

Tests / approvals

MTTF [years]	45

AS-i classification

AS-i version	3.0
AS-i profile	M4
AS-i certificate	97302

Mechanical data

Weight [g]	715
Housing	housing for DIN rail mounting
Materials	aluminium powder-coated; steel sheet galvanised; PC

Displays / operating elements

Display

function	1 x LED, red/green
	full graphic LCD display

Accessories

Items supplied

terminals

Accessories (optional)

licence: "CODESYS V3", E71400

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals:...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1411-01 — 13.04.2023 —
