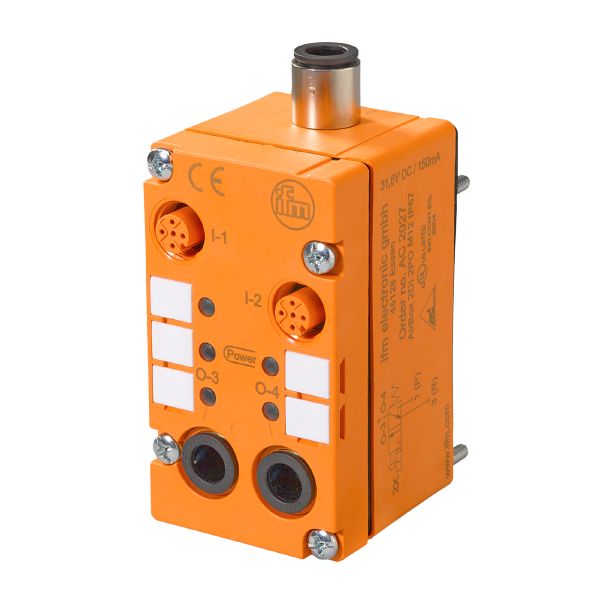

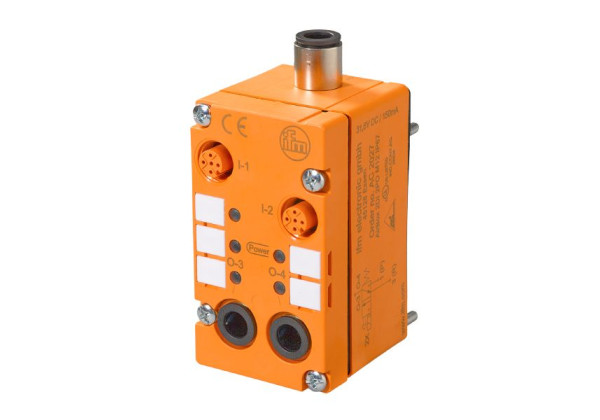

AC2027 - ecomat300-AirBox 2DI 2PO M12
Brand: IFM Electronic
Code: AC2027
- For the decentralised triggering of cylinders and valve actuators
- Combination of AS-i I/O module and solenoid valve
- High energy efficiency due to decentralised application near the actuator
- Reduced installation and wiring complexity
- Easy mounting and wiring on module lower part
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 150 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of pneumatic outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 20...30 |
| Max. total current rating of inputs [mA] | 100 |
| Input current High [mA] | > 3 |
| Input current Low [mA] | < 1.5 |
| Switching level high [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of pneumatic outputs | 2 |
|---|---|
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature [°C] | 0...55 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
|---|
AS-i classification
| Extended addressing mode | no | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i profile | S-3.F | ||||||||||
| AS-i I/O configuration [hex] | 3 | ||||||||||
| AS-i ID code [hex] | F | ||||||||||
| AS-i certificate | 10501 | ||||||||||
| Assignment of the data bits |
|
Mechanical data
| Weight [g] | 254.5 | |
|---|---|---|
| Type of mounting | screw mounting | |
| Materials | PBT | |
| Pneumatic system | 2 x 3/2-way seat valves | |
| Operating pressure range [bar] | 2...8 | |
| Operating pressure range [MPa] | 0.2...0.8 | |
| Note on working pressure range |
| |
| Air flow at 6/5 bar [l/min] | 350 | |
| Air flow at 6/0 bar [l/min] | 550 | |
| Permissible compressed air | filtered (5 µm); lubricated (ISO-VG10) or not lubricated | |
| Tube fittings | Legris LF 3000/8 | |
| Exhaust | exhaust can be discharged through tube connection |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| contact pins to module lower part, FK / PG: | |
| Connector: M12; coding: A |
