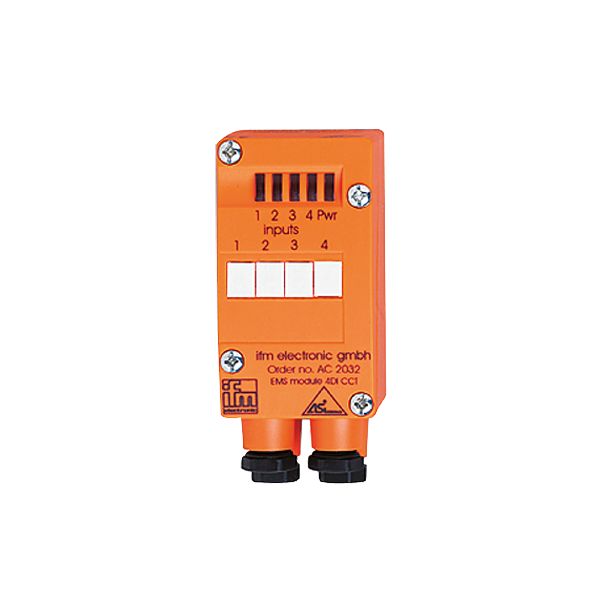

AC2032 - ecomat300-EMS/Module/4DI/CCT

Code: AC2032

Easy to mount and wire
For the connection of sensors and actuators with cable entry
Device connection with cage clamps
Clearly visible powerful LEDs for displaying operation, switching status and error

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	200

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20...30
Max. total current rating of inputs [mA]	160
Input current High [mA]	> 5
Input current Low [mA]	< 3
Switching level high [V]	> 10
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 50295

AS-i classification

AS-i profile

S-0.0.F

AS-i I/O configuration [hex]

AS-i ID code [hex]

0.F

Assignment of the data bits

data bit	D0	D1	D2	D3
assignment	I-1	I-2	I-3	I-4

Mechanical data

Weight [g]	182
Type of mounting	AS-i interface to FC and SC lower parts
Materials	PA 6-GF30; stainless steel (1.4305 / 303)

Displays / operating elements

Display

operation	LED, green
errors	LED, red
function	LED, yellow

Electrical connection

Module connection	Flat cables

Remarks

Pack quantity	1 pcs.

Electrical connection

	cage clamps:
