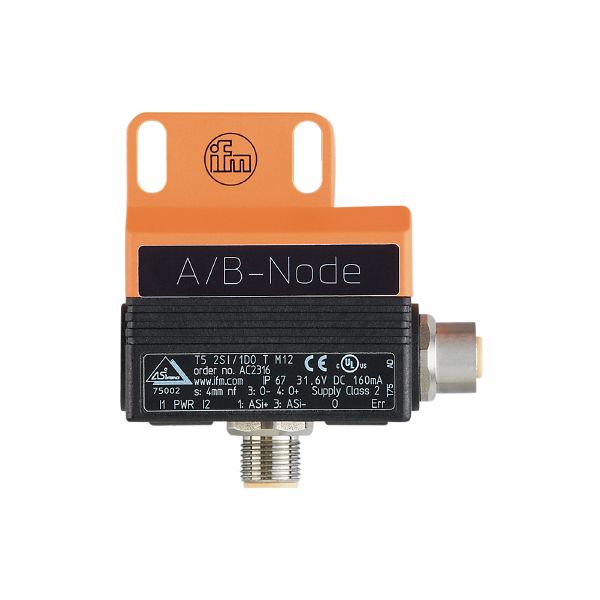

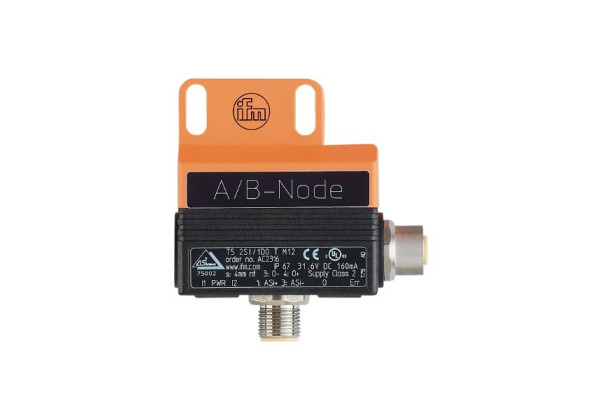

AC2316 - efector180-DUAL SENSOR T5 2SI 1DO T M12
Brand: IFM Electronic
Code: AC2316
- For monitoring valve positions
- For reliable position feedback on valve actuators
- With triggering and fault monitoring of the solenoid valve
- Non-contact and self-cleaning system
- Quick and secure mounting with only three screws
Product characteristics
| Electrical design | AS-i |
|---|---|
| Sensing range [mm] | 4 |
| Dimensions [mm] | 55 x 60 x 35 |
Electrical data
| Operating voltage [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 160 |
Outputs
| Electrical design | AS-i |
|---|---|
| Permanent current rating of switching output DC [mA] | 100 |
Detection zone
| Sensing range [mm] | 4 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 310 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | A.E |
| AS-i certificate | 75002 |
Mechanical data
| Weight [g] | 179 |
|---|---|
| Mounting | non-flush mountable |
| Dimensions [mm] | 55 x 60 x 35 |
| Materials | PBT |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2316-01 — 13.04.2023 —
