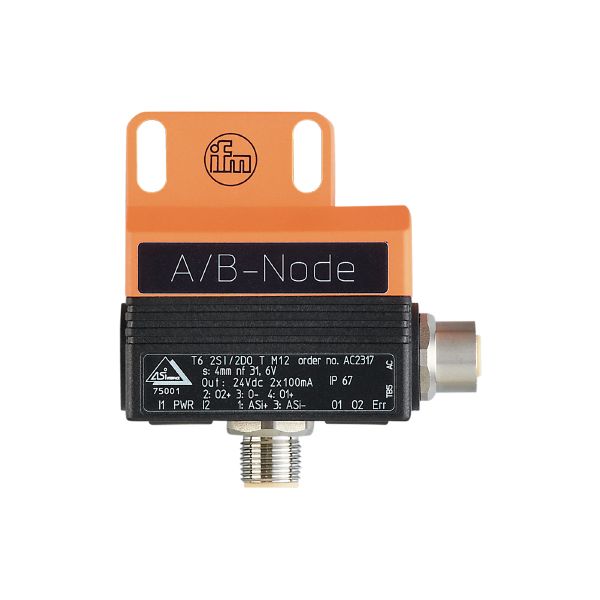

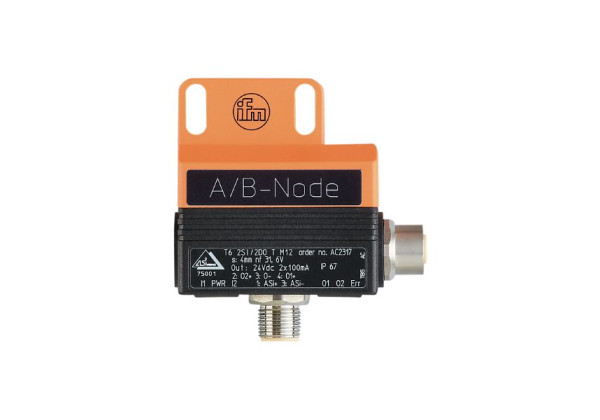

AC2317 - efector180-DUAL SENSOR T6 2SI 2DO T M12

Code: AC2317

For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Non-contact and self-cleaning system
Quick and secure mounting with only three screws

Product characteristics

Electrical design	AS-i
Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Electrical data

Operating voltage [V]	26.5...31.6 DC; ("supply class 2" to cULus)
Max. current consumption from AS-i [mA]	260
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2
Sensor supply of the inputs	AS-i
Power supply [V]	20...30
Digital inputs protected against short circuits	no

Outputs

Electrical design	AS-i
Number of digital outputs	2
Max. current load per output [mA]	100
Short-circuit proof	yes
Electrically separated	no
Actuator supply outputs	AS-i

Detection zone

Sensing range [mm]	4

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-2

MTTF [years]

310

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E
AS-i certificate	75001

Mechanical data

Weight [g]	178.5
Mounting	non-flush mountable
Dimensions [mm]	55 x 60 x 35
Materials	PBT; PC

Displays / operating elements

Display

operation	1 x LED, green
function	1 x LED, yellow
error	1 x LED, red

Accessories

Items supplied

Reinforcement bracket

socket head screws: 2 x M5 x 35

washers: 2

Remarks

The outputs must not be set simultaneously if the total load current exceeds 100 mA.

Pack quantity

1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: stainless steel

Electrical connection - socket

Ausgänge	Connector: 1 x M12; coding: A; Moulded body: stainless steel

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2317-00 — 13.04.2023 —
