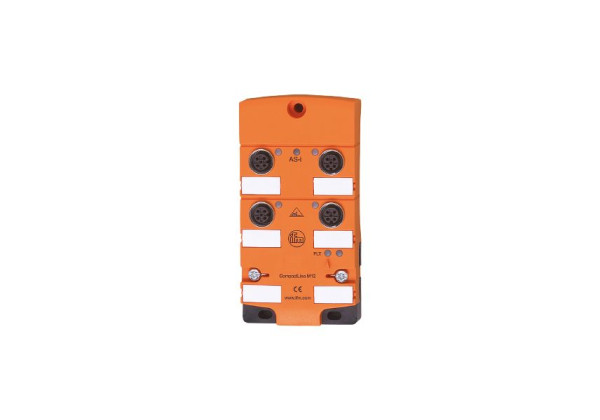

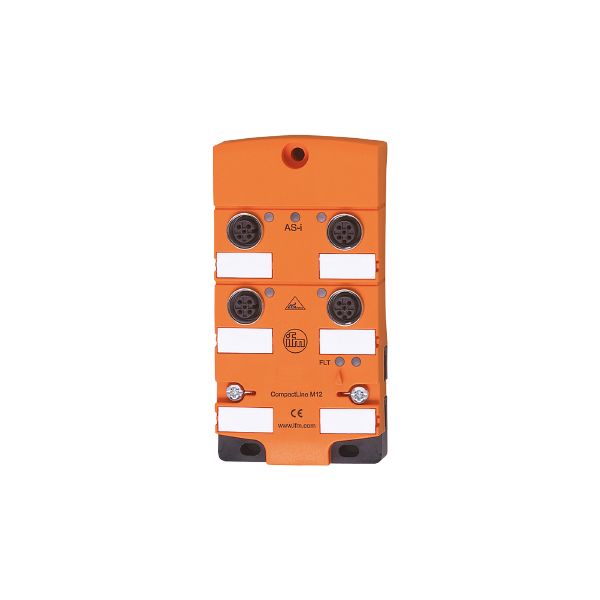

AC2413 - ecomat300-CompactModule 4 SB

Code: AC2413

Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	2000
Max. current load total [A]	4
Additional voltage supply [V]	20...30 DC; (AUX)
Max. current consumption from additional supply [mA]	2000; (AUX)

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67; (when flat cables are used E7400x / E7401x)

Tests / approvals

EMC

EN 61000-6-2
EN 62026-2
EN 50581

UL approval

power supply

Class 2

Mechanical data

Weight [g]	272.5
Type of mounting	AS-i flat cables directly connectable
Dimensions [mm]	118.2 x 60 x 27
Materials	PA 6.6; socket: brass nickel-plated; threaded inserts in the lower part: brass nickel-plated; O-ring: FKM; piercing contacts: CuSn6 nickel-plated and tin-plated

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)

Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: M12; coding: A
