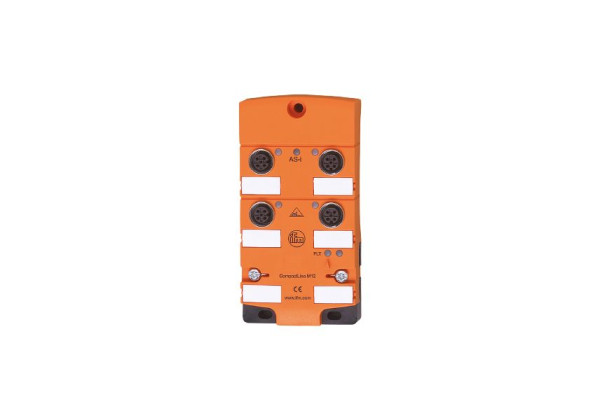

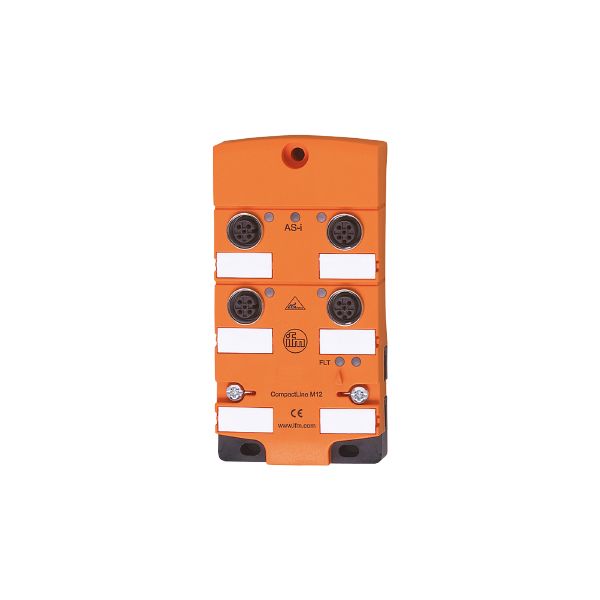

AC2487 - ecomat300-CompactM12 4 DO T V4A A/B

Code: AC2487

Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators

Application

Design	only for operation with AS-i masters with the profile M4
Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	75
Max. current load total [A]	4
Additional voltage supply [V]	15...30 DC; (AUX)
Max. current consumption from additional supply [mA]	4000; (AUX)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 4

Outputs

Number of digital outputs	4
Circuit	PNP
Voltage range DC [V]	15...30; (AUX)
Max. current load per output [mA]	2000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]	4
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67; (when flat cables are used E7400x / E7401x)

Tests / approvals

EMC

EN 61000-6-2
EN 62026-2
EN 50581

MTTF [years]

300

UL approval

power supply

Class 2

AS-i classification

AS-i version

3.0

AS-i addressing

IR addressing possible

Extended addressing mode

yes

AS-i profile

S-7.A.7

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.7

AS-i certificate

128401

Assignment of the data bits

data bit	D0	D1	D2	D3
Output	1	2	3	4
socket	O-1	O-2	O-3	O-4
pin	4	4	4	4

Mechanical data

Weight [g]	282
Type of mounting	AS-i flat cables directly connectable
Materials	PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); O-ring: EPDM; screws: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display

switching status	LED, yellow O1...O4
operation	LED, green AS-i, AUX
errors	LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)

Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: M12; coding: A
