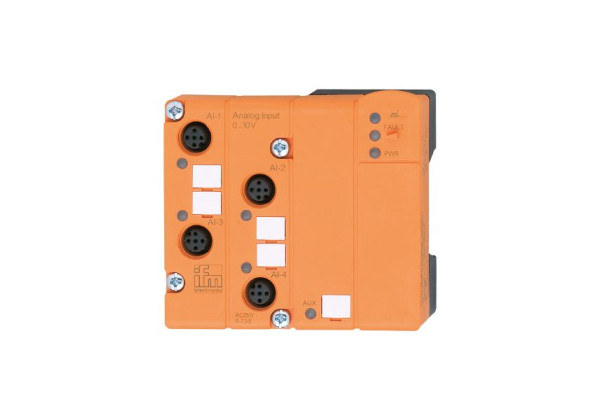

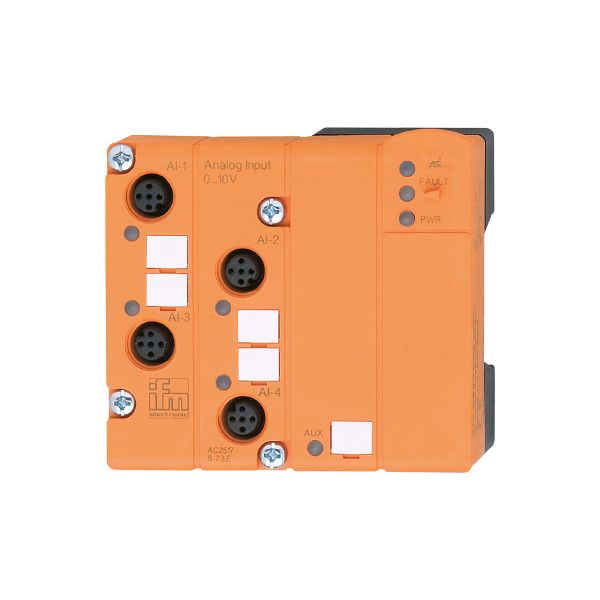

AC2517 AS-Interface ClassicLine module ClassicLine90 4AI (V) M12 IP67
Brand: IFM Electronic
Code: AC2517
- Easy to mount and wire
- Connection of the AS-i flat cable via module lower parts
- Clearly visible powerful LEDs for displaying operation, switching status and error
- High protection rating for the requirements of harsh industrial environments
- Robust M12 connectors for connecting sensors and actuators
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 157 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 24...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply [mA] | 550; (AUX) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 4 |
|---|
Inputs
| Max. total current rating of inputs [mA] | 100 |
|---|---|
| Number of analogue inputs | 4; (connection of 2-wire, 3-wire and 4-wire sensors) |
| Analogue input (voltage) [V] | 0...10 |
| Analogue inputs protected against short circuits | no |
| Resolution of analogue input | 16 (1 bit = 1 mV) |
| Precision analogue input [%] | 0,5 |
Operating conditions
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | -20...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 139 |
AS-i classification
| AS-i addressing | addressing socket; IR addressing possible |
|---|---|
| AS-i profile | S-7.3.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.E |
Mechanical data
| Weight [g] | 221.5 |
|---|---|
| Type of mounting | AS-i interface to FC/FC-E lower parts |
| Materials | PBT |
| Tightening torque [Nm] | 0.6...0.8 |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: M12; coding: A |
