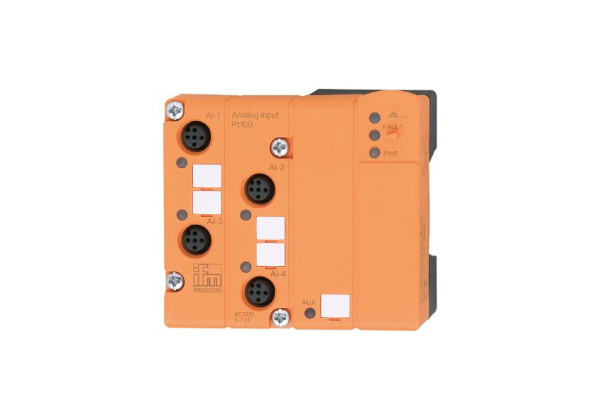

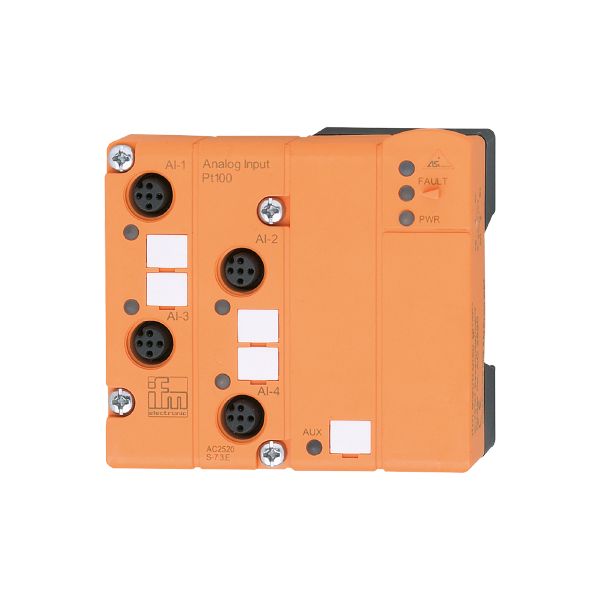

AC2520 - ecomat300-ClassicL90 4AI(Pt100) M12 IP67

Code: AC2520

Easy to mount and wire
Connection of the AS-i flat cable via module lower parts
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators

Product characteristics

Number of inputs and outputs	Number of Pt100 inputs: 4
Measuring range [°C]	-200...850

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	80
Reverse polarity protection	yes
Max. current load total [A]	0.08

Inputs / outputs

Number of inputs and outputs	Number of Pt100 inputs: 4

Inputs

Number of Pt100 inputs	4
Sensor supply of the inputs	AS-i
Digital inputs protected against short circuits	yes
Number of analogue inputs	connection of 2- and 4-wire sensors
Resolution of analogue input	16 / 0.1 °C

Measuring/setting range

Measuring range [°C]	-200...850

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-25...85
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-4	: 2001
EN 61000-6-2	: 2001

MTTF [years]

140

AS-i classification

AS-i addressing	addressing socket; IR addressing possible
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E

Mechanical data

Weight [g]	205.55
Type of mounting	AS-i interface to FC lower parts
Materials	PBT
Tightening torque [Nm]	0.6...0.8

Displays / operating elements

Display

switching status	LED, yellow channels AI1...AI4
operation	LED, green Voltage AS-i - AS-i
errors	LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)

Module lower part

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: M12; coding: A
