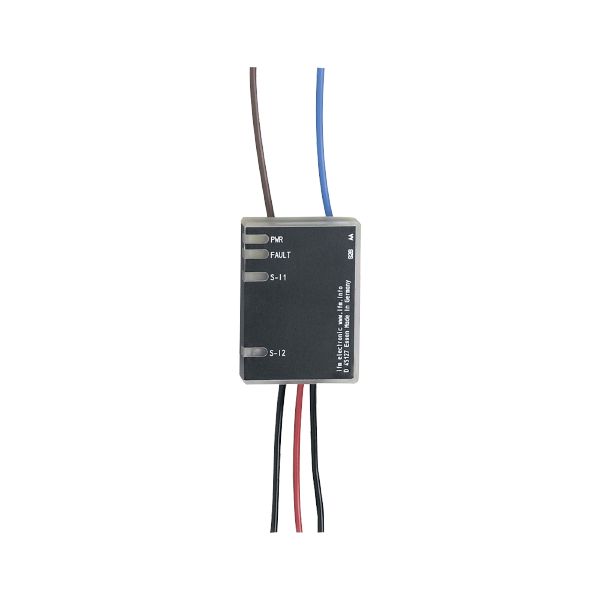

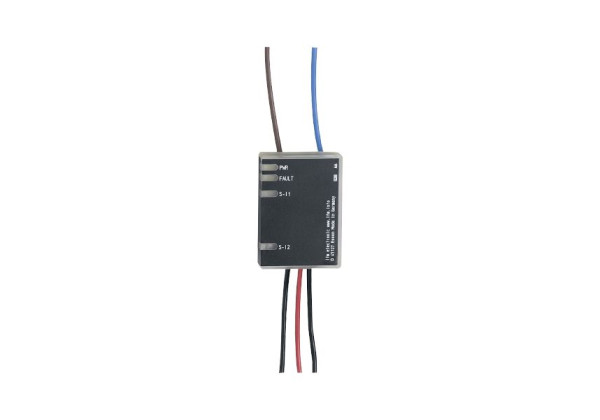

AC2729 - ecomat300-AS-i pcb 2-DI/1-DO

Code: AC2729

For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of wire strands
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for two control and signalling devices

Application

Application	housing for panel mounting

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 50
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	18...30; (DC)
Input current High [mA]	> 5
Digital inputs protected against short circuits	no

Outputs

Electrical design	PNP
Voltage range DC [V]	DC
Max. current load per output [mA]	10
Short-circuit proof	no
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 20; (depending on the housing)

Tests / approvals

EMC

EN 50295

MTTF [years]

842

AS-i classification

AS-i version

2.11; 3.0

Extended addressing mode

yes

AS-i profile

S-7.A.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

AS-i certificate

75101

Assignment of the data bits

data bit	D0	D1	D2	D3
Designation	I-1 / O-1	I-2	-	-

Mechanical data

Weight [g]	58.5

Displays / operating elements

Display

operation	LED, green
errors	LED, red
function	LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.2 m
