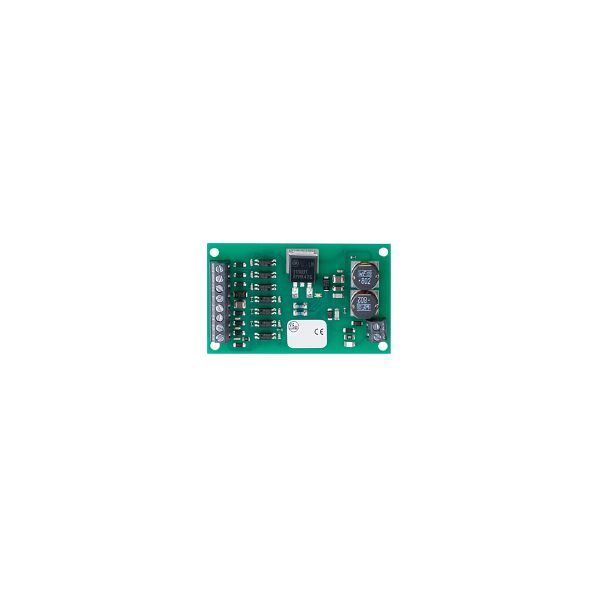

AC2731 - ecomat300-PCB 3DI 3DO T IP00

Code: AC2731

For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of screw terminals
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for three control and signalling devices

Application

Application	housing for panel mounting

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 200
Max. current load total [A]	0.18; (total current for all inputs and outputs supplied from AS-i: 180 mA)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 3; Number of digital outputs: 3

Inputs

Number of digital inputs	3
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20...30; (DC)
Digital inputs protected against short circuits	yes

Outputs

Electrical design	PNP
Number of digital outputs	3
Voltage range DC [V]	18...30; (DC)
Max. current load per output [mA]	180; (note current load for all inputs and outputs )
Short-circuit proof	yes
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...70

Tests / approvals

EMC

EN 50295

AS-i classification

AS-i version

2.1

Extended addressing mode

yes

AS-i profile

S-7.A.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

Assignment of the data bits

data bit	D0	D1	D2	D3
input	I-1	I-2	I-3	-
Output	O-1	O-2	O-3	-

Mechanical data

Weight [g]	30.5

Displays / operating elements

Display

operation	LED, green
failure	LED, red

Remarks

The AS-i module is a PCB solution for an AS-i slave, supply via AS-i.

A watchdog function switches the outputs off if there is no communication on the AS-i line.

Pack quantity

1 pcs.

Electrical connection

	screw terminals: 0.2...1.5 mm²; AWG26 - AWG16
