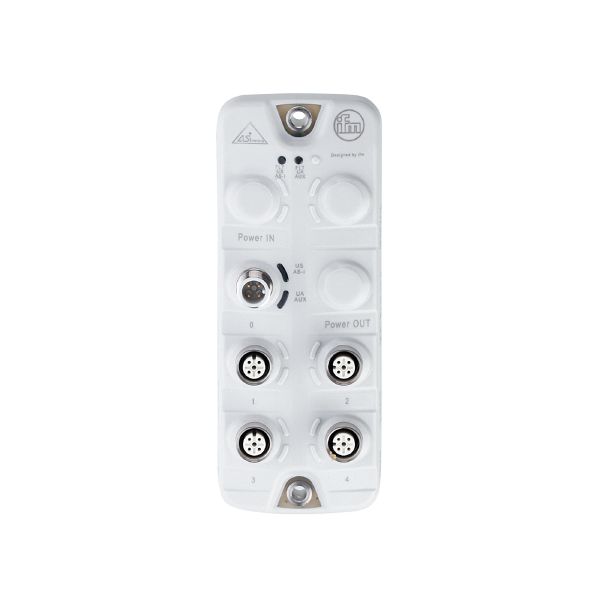

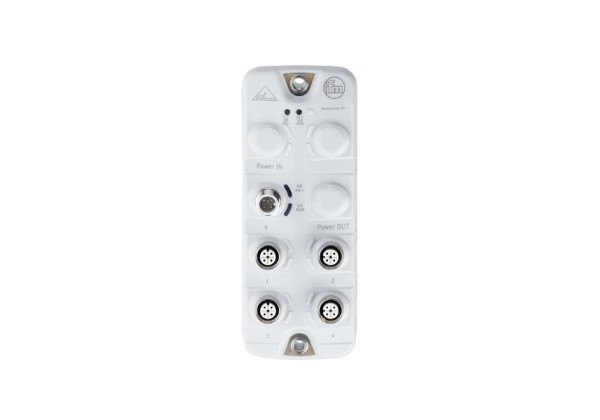

AC2950 passive power distributor ProcessLine 4SB IP69K

Code: AC2950

Application

Design	AS-i oder IO-Link Spannungsverteiler
Application	hygienic and wet areas in the food industry

Electrical data

Protection class	III
Overcurrent detection	yes; (4400 mA ± 200 mA)

AS-i operation

Operating voltage [V]	18...31.6 DC; (AS-i)
Current consumption [mA]	4000; (AS-i)
Additional voltage supply [V]	15...30 DC; (AUX)
Max. current consumption from additional supply [mA]	4000; (AUX)

IO-Link operation

Operating voltage [V]	20...30 DC; (US)
Current consumption [mA]	4000; (US)
Additional voltage supply [V]	20...30 DC; (UA)
Max. current consumption from additional supply [mA]	4000; (UA)

Operating conditions

Ambient temperature [°C]

-25...60

Storage temperature [°C]

-25...85

Max. relative air humidity [%]

90; (non condensing)

Max. height above sea level [m]

4000

Protection

IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)

Protection rating (NEMA 250)

Pollution degree

Chemical media

ISO 16750-5	HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1	AA

Tests / approvals

EMC

EN 62026-2
IEC 61000-6-2

Shock resistance

DIN EN 60068-2-27

Vibration resistance

DIN EN 60068-2-64
DIN EN 60068-2-6

MTTF [years]

379

Mechanical data

Weight [g]	284.8
Dimensions [mm]	152 x 59.3 x 38.4
Materials	housing: PA grey; plugs and sockets: stainless steel (1.4404 / 316L)

Displays / operating elements

Display

operation	LED, green AS-i / AUX / US / UA
fault	LED, red

Electrical connection

Module connection	M12

Remarks

Pack quantity	1 pcs.

Electrical connection - Power IN

AS-i operation	Connector: M12; coding: A; Tightening torque: 0.6...0.8 Nm

Electrical connection - Power OUT

AS-i operation 1...4	Connector: M12; coding: A; Tightening torque: 0.6...0.8 Nm
