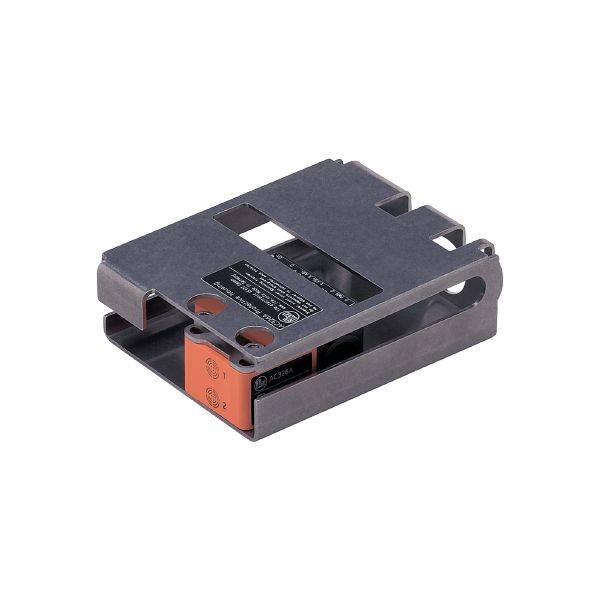

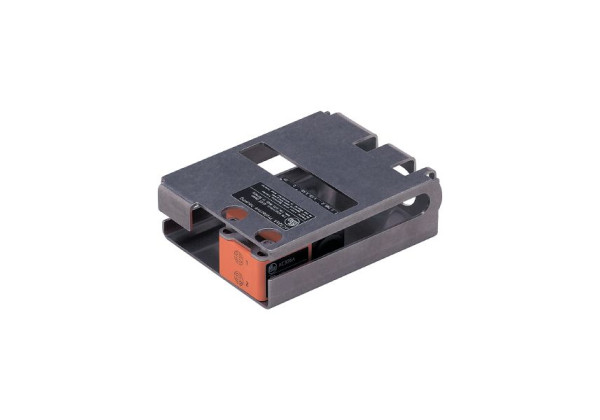

AC326A - efector180-DUAL SENSOR T5 2SI 1DO T/3G
Brand: IFM Electronic
Code: AC326A
- For monitoring valve positions
- For reliable position feedback on valve actuators
- With triggering and fault monitoring of the solenoid valve
- Non-contact and self-cleaning system
- Quick and secure mounting with only three screws
Product characteristics
| Sensing range [mm] | 4 |
|---|---|
| Dimensions [mm] | 55 x 60 x 35 |
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 160 |
| Protection class | III |
Detection zone
| Sensing range [mm] | 4 |
|---|---|
| Operating distance target puck [mm] | 74 |
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| Note on ATEX marking |
| ||
| EMC |
| ||
| MTTF [years] | 310 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | A.E |
Mechanical data
| Weight [g] | 766.5 |
|---|---|
| Dimensions [mm] | 55 x 60 x 35 |
| Materials | housing: PBT orange; cover: PC black; Impact protection housing: stainless steel |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Elektrischer Anschluss | Connector: 1 x M12; coding: A; Moulded body: stainless steel |
|---|
Electrical connection - socket
| Connection | Connector: 1 x M12; coding: A; Moulded body: stainless steel |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — AC326A — 01.07.2013 —
