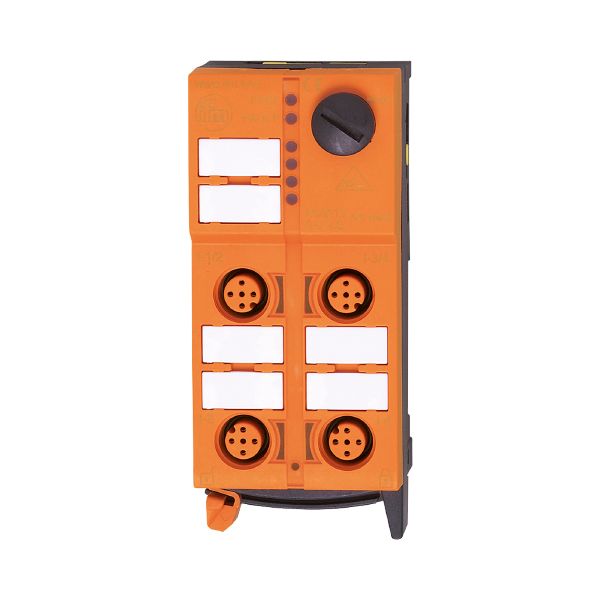

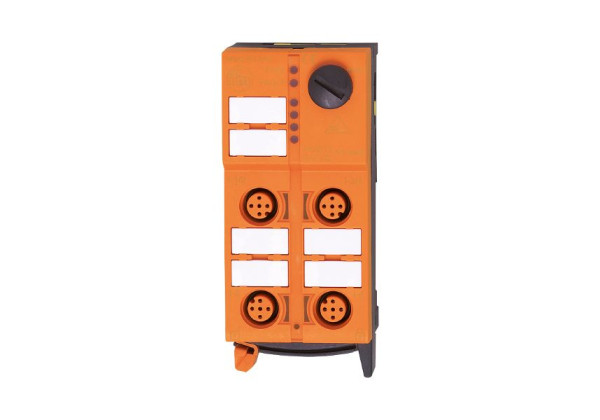

AC5200 - ecomat300-ClassicLine 4SB IP67
Brand: IFM Electronic
Code: AC5200
- Easy toolless installation and wiring thanks to quick mounting technology
- Three freely selectable directions of the flat cable
- Clearly visible powerful LEDs for displaying operation, switching status and error
- High protection rating for the requirements of harsh industrial environments
- Robust M12 connectors for connecting sensors and actuators
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current load per module/slot [A] | 2; (AS-i: 2; AUX: 2) |
| Additional voltage supply [V] | 15...30 DC; (AUX ; "supply class 2" to cULus) |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 10284 |
Mechanical data
| Weight [g] | 152.5 |
|---|---|
| Type of mounting | AS-i flat cables directly connectable |
| Dimensions [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied |
| |
|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| quick mounting technology for AS-i flat cable: ; three orientations possible | |
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5200-00 — 13.04.2023 —
