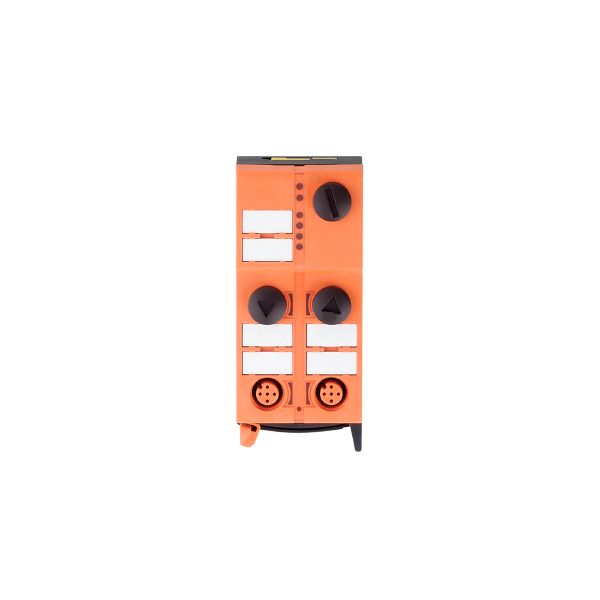

AC5218 - ecomat300-ClassicLine 2AO C IP67
Brand: IFM Electronic
Code: AC5218
- Easy toolless installation and wiring thanks to quick mounting technology
- Three freely selectable directions of the flat cable
- Clearly visible powerful LEDs for displaying operation, switching status and error
- High protection rating for the requirements of harsh industrial environments
- Robust M12 connectors for connecting sensors and actuators
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 50 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 16...30 DC; (AUX) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Number of analogue outputs | 2; (connection of 2-wire, 3-wire and 4-wire actuators) |
|---|---|
| Analogue current output [mA] | 4...20 |
| Max. voltage drop across load for nominal current [V] | 10 |
| Resolution of analogue output | 12 bit |
Accuracy / deviations
| Measuring error [% of the final value] | 0,5 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
| Pollution degree | 2 |
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 125 | ||||||
| UL approval |
|
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | no |
| AS-i profile | S-7.3.5 |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.5 |
| AS-i certificate | 124001 |
Mechanical data
| Weight [g] | 183 |
|---|---|
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied |
| |
|---|---|---|
| Accessories (optional) |
|
Remarks
| Remarks |
| |||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| quick mounting technology for AS-i flat cable: ; three orientations possible | |
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5218-00 — 13.04.2023 —
