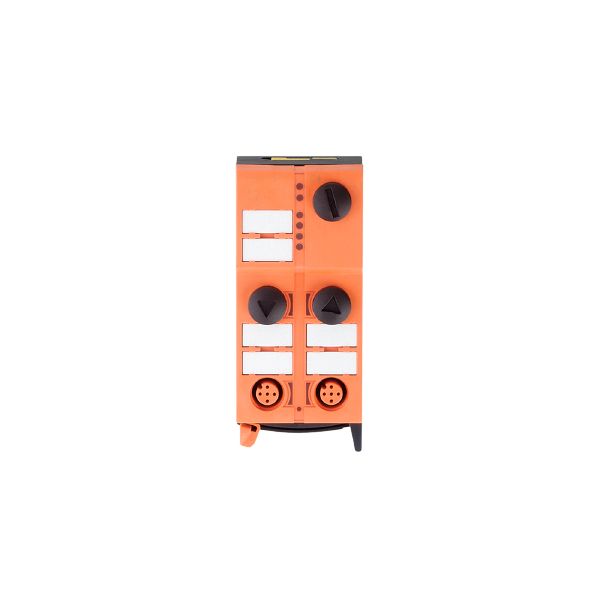

AC5222 - ecomat300-ClassicLine 2AI C IP67

Code: AC5222

Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators

Product characteristics

Number of inputs and outputs	Number of analogue inputs: 2

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	250
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Sensor supply of the inputs	AS-i
Number of analogue inputs	2; (connection of 2- and 3-wire sensors)
Analogue input (current) [mA]	4...20
Max. voltage drop across load for nominal voltage [V]	10
Analogue inputs protected against short circuits	yes
Resolution of analogue input	12 bit

Accuracy / deviations

Accuracy	0.5; (% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range)

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67

Tests / approvals

EMC

EN 50295

MTTF [years]

174

UL approval

power supply

Class 2

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	no
AS-i profile	S-7.3.D
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.D

Mechanical data

Weight [g]	176
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display

analogue signal	LED, yellow channels AI1...AI2
operation	LED, green AS-i
errors	LED, red

Electrical connection

Module connection	Flat cables

Accessories

Items supplied

lower part

Accessories (optional)

Protective cap: M12, E73004

Remarks

When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.

There is an electrical connection between the sensor and AS-i.

The module is exclusively supplied via the yellow AS-i cable.

Pack quantity

1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable: ; three orientations possible
	Connector: M12; coding: A
