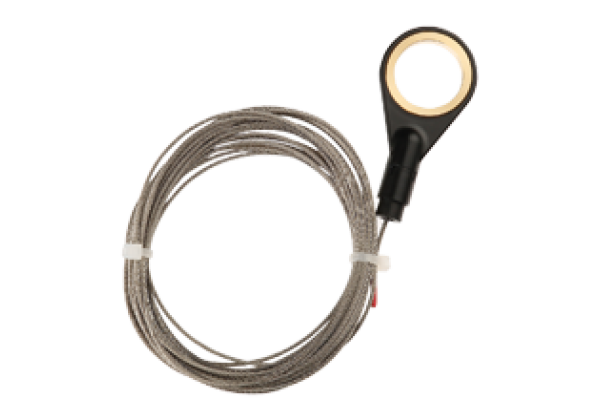

Measuring rope ACC-PACK-SL*15*/GS130/PL
Brand: Pepperl+Fuchs
Code: ACC-PACK-SL*15*/GS130/PL
Measuring rope 15.5 m for cable pull with housing diameter 130 mm, Replacement measuring rope 15 m, For design 130 mm, For PL version, Construction type: 130 mm
Datasheet excerpt: Technical data of ACC-PACK-SL*15*/GS130/PL
| Product Description |
|---|
| Measuring rope 15.5 m for cable pull with housing diameter 130 mm |
| General specifications | ||
|---|---|---|
| Type | Measuring rope | |
| Measuring range | 15 m | |
| Construction type | 130 mm | |
| Mechanical specifications | ||
| Length | 15.5 m | |
| Rope diameter | 1.35 mm | |
| Material | ||
| Rope | Stainless steel 1.4404 / AISI 316L | |
| Mass | 122 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27270590 |
| ECLASS 5.1 | 27270590 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
