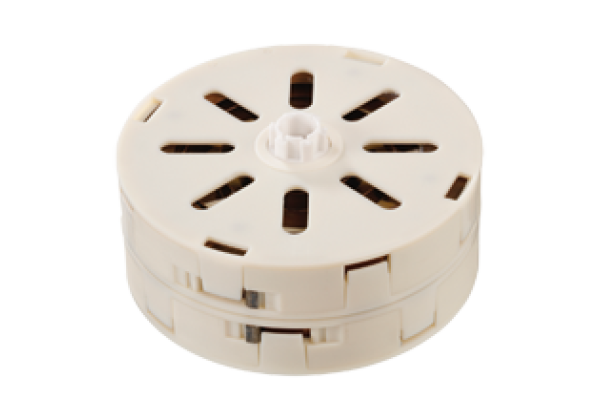

Spring package ACC-PACK-SP-SL*15/20*/GS130/PL
Brand: Pepperl+Fuchs
Code: ACC-PACK-SP-SL*15/20*/GS130/PL
Spring package for cable pulls with housing diameter 130 mm, measuring range 15 m/20 m and right-hand rope pull-out, For measuring rope length 15 m, 20 m, For design 130 mm, For PL version, Measuring range: 15 mm , 20 mm, Construction type: 130 mm
Datasheet excerpt: Technical data of ACC-PACK-SP-SL*15/20*/GS130/PL
| Product Description |
|---|
| Spring package for cable pulls with housing diameter 130 mm, measuring range 15 m/20 m and right-hand rope pull-out |
| General specifications | ||
|---|---|---|
| Type | Spring package, double | |
| Measuring range | 15 mm , 20 mm | |
| Construction type | 130 mm | |
| Mechanical specifications | ||
| Diameter | 117 mm | |
| Width | 42 mm | |
| Material | ||
| Housing | PBT | |
| Spring | high-performance textured steel | |
| Mass | 1250 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27270590 |
| ECLASS 5.1 | 27270590 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
