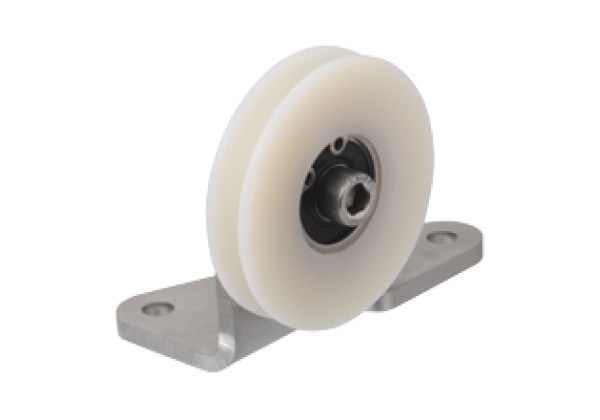

Guide pulley ACC-PUL-ECN-SEP2
Brand: Pepperl+Fuchs
Code: ACC-PUL-ECN-SEP2
Separate guide pulley for cable pulls, Guide pulley for all cable pull models, For applications with rope exit ≥ 3°, Ideal for wall mounting, Breaking ice on the measuring rope, For bridging edges and obstacles
Datasheet excerpt: Technical data of ACC-PUL-ECN-SEP2
| Product Description |
|---|
| Separate guide pulley for cable pulls |
| Mechanical specifications | ||
|---|---|---|
| Material | ||
| Guide pulley bracket | stainless steel 1.4301 / AISI 304 | |
| Guide pulley | Polyamide PA 6 | |
| Storage | stainless steel | |
| Spacer sleeve | stainless steel 1.4301 / AISI 304 | |
| Mounting materials | stainless steel | |
| Mass | 130 g | |
| General information | ||
| Scope of delivery | 2 allen head srcews M4 x 8 2 allen head srcews M4 x 8 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27270590 |
| ECLASS 5.1 | 27270590 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
