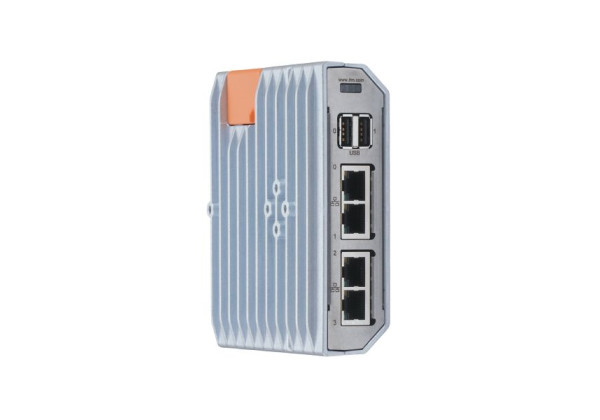

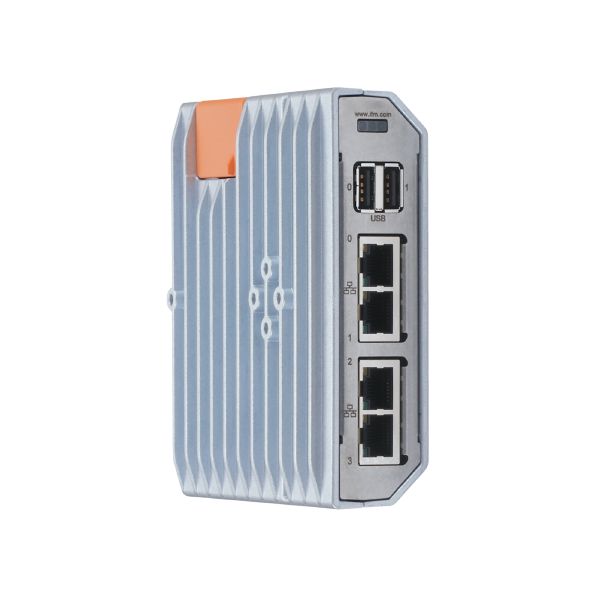

AE3100 IIoT controller IIoT Controller IP20 1S
Brand: IFM Electronic
Code: AE3100
- 2-in-1: cloud connector and powerful controller
- Perfect IO-Link integration
- Plug & play access to the I/O level via Ethernet
- Can be mounted on the DIN rail in different orientations
- Powerful technology for demanding applications
Product characteristics
| Communication interface | Ethernet; USB |
|---|
Application
| Application | freely programmable edgeDevice for industrial applications |
|---|
Electrical data
| Operating voltage [V] | 18...32 DC; (PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Power consumption [W] | 14; (max. power for USB devices: 1,5 A / 5 V) |
| Reverse polarity protection | yes |
Software / programming
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Communication interface | Ethernet; USB |
|---|---|
| Number of Ethernet interfaces | 4 |
| Number of USB interfaces | 2 |
| Transmission standard | 10Base-T; 100Base-TX |
|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Connector type | RJ45 |
| Protocol | EtherNet/IP; PROFINET; EtherCAT; Modbus TCP; OPC UA; IoT (MQTT, HTTP, Cloud connectors) |
| Transmission rate | < 480 MBit/s | ||
|---|---|---|---|
| Connector type | type A | ||
| Version | USB 2.0 | ||
| Note on interfaces |
|
Operating conditions
| Ambient temperature [°C] | -25...55 | ||
|---|---|---|---|
| Note on ambient temperature |
| ||
| Storage temperature [°C] | -25...85 | ||
| Max. relative air humidity [%] | 90; (non condensing) | ||
| Max. height above sea level [m] | 3000 | ||
| Protection | IP 20 | ||
| Pollution degree | 2 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 685 |
|---|---|
| Type of mounting | DIN rail mounting |
| Materials | housing: diecast aluminium passivated; stainless steel |
Displays / operating elements
| Display |
|
|---|
Hardware
| Processor | ARM 64 Bit Quad Core 1,2 GHz |
|---|---|
| Working memory | 1 GByte RAM |
| Mass storage | 8 GByte Flash |
| Removable storage | Micro SD card; SD; SDHX; SDXC; USB interface |
Data memories
| Real-time clock | yes; UTC, battery buffered |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector: 4 x RJ45 |
Electrical connection - USB
| Connector: 2 x type A |
Electrical connection - power supply
| Connector: 1 x Cage clamp |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AE3100-00 — 30.05.2023 —
