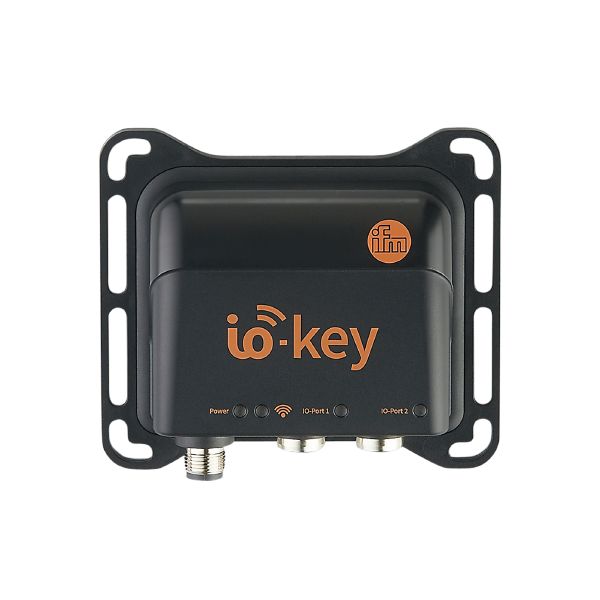

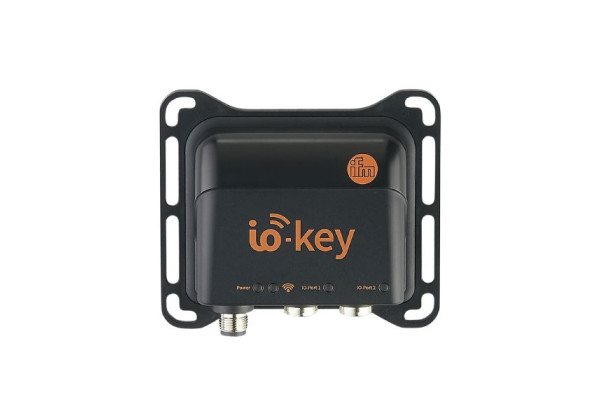

AIK001 wireless IoT gateway io-key GSM IoT Gateway IOL 2P
Brand: IFM Electronic
Code: AIK001
- Pre-configured, no SIM card required
- Web-based dashboard for visualisation and analysis of cloud data
- Email or text message when limit values are exceeded
- IO-Link sensor data is sent directly via mobile network to the cloud
- Two IO-Link sensors can be connected
Application
| Application | wireless IoT gateway with NarrowBand IoT data transmission; Sensor data collected and sent to the ifm cloud via radio transmission | |
|---|---|---|
| Radio approval for | EU/RED | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 1000 |
| Power consumption [W] | 8.6 |
| Protection class | III |
| Reverse polarity protection | yes |
| Operating frequency [MHz] | NarrowBand-IoT: 800...900 MHz; 2G (GSM): 900/1800 MHz; SIM card onboard |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Number of digital outputs | 2 |
|---|---|
| Max. current load per output [mA] | 100 |
Software / programming
| Parameter setting options | dashboard display with alarm functions via email or text message |
|---|
Interfaces
| Communication interface | IO-Link; Mobile networks; Bluetooth |
|---|
| Transmission standard | BTLE |
|---|---|
| Frequency band | 2,4 GHz |
| Usage type | service interface |
| Number of ports | 2 |
|---|---|
| Unterstützte IO-Link Revision | 1.1 |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| Transmission standard | NarrowBand-IoT; 2G quadband GSM |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...60 |
| Max. height above sea level [m] | 3000 |
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| Vibration resistance |
| ||||||
| Shock resistance |
| ||||||
| Radio approval | EN 301511 EN 301908-1 EN 301908-13 EN 300328 |
Mechanical data
| Weight [g] | 121 |
|---|---|
| Materials | housing: ABS |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| IO-Link Port 1 | Connector: 2 x M12; coding: A |
|---|
Electrical connection - power supply
| Power | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AIK001-00 — 09.06.2023 —
